Powder Coated Tie-Bolt Frames - Rugged Design to Last

AGC’s powder coated, mild steel tie-bolt frames are built to last for most food and beverage processing applications. Model F frames maintain many hygienic features such as stainless steel wetted parts, oversized stainless steel tie bolts with bronze nuts and heavy wall port nozzle connections. We use a heavy duty, corrosion resistant powder coating to protect your frame and all units come with pad feet.

 AGC’s powder coated, industrial model (I Frame) has the same features as our F Frame, but uses galvanized steel tie bolts, perfect for utility applications where the heat exchanger is rarely opened.

Each style of stainless steel frames use AGC’s ProFlow Series plate design, which provide designs for food specific processing applications.

Below, see how AGC’s line of powder coated, mild steel tie-bolt frames can help you process. If you need help reviewing your requirements, contact us.

AR56-F

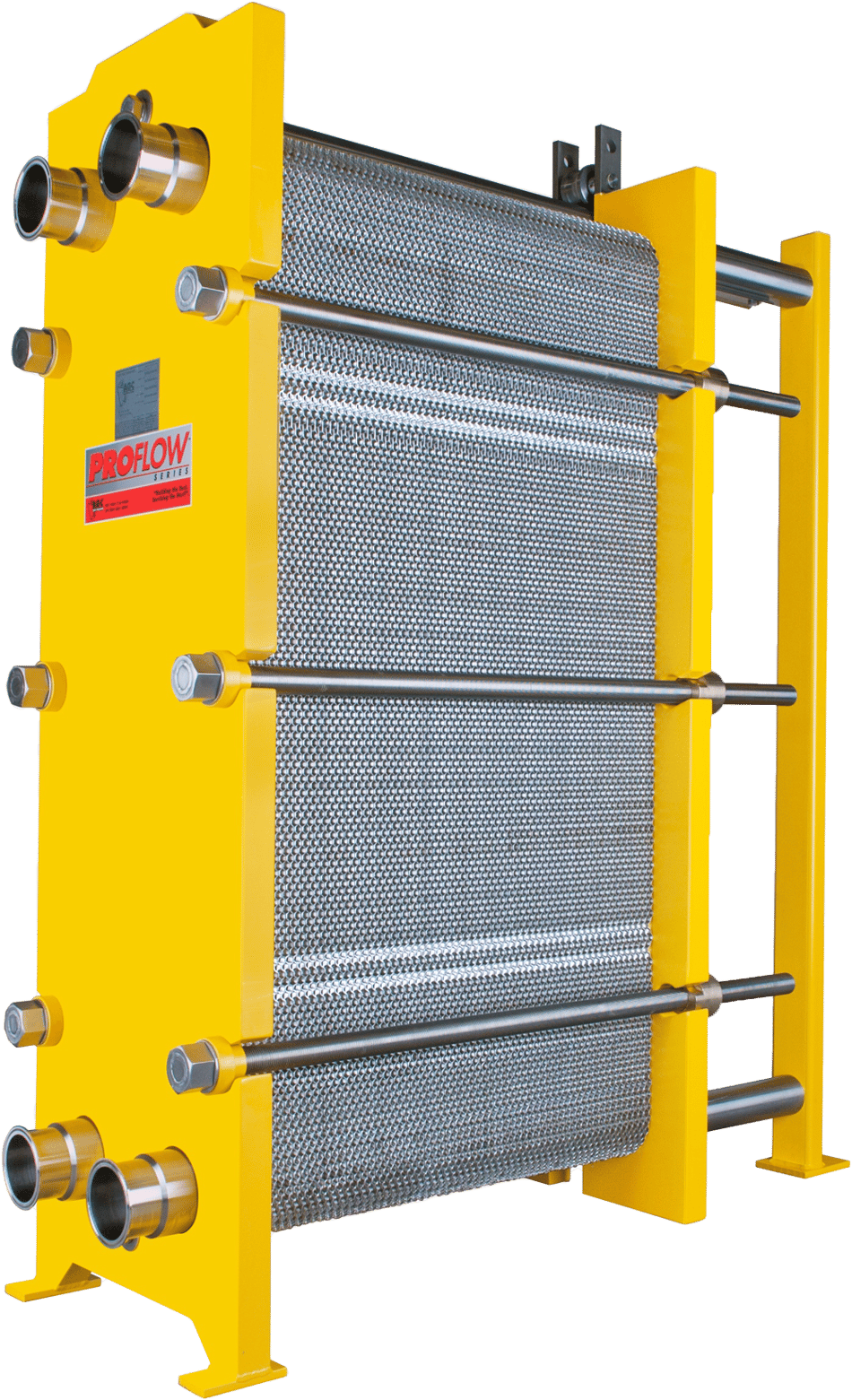

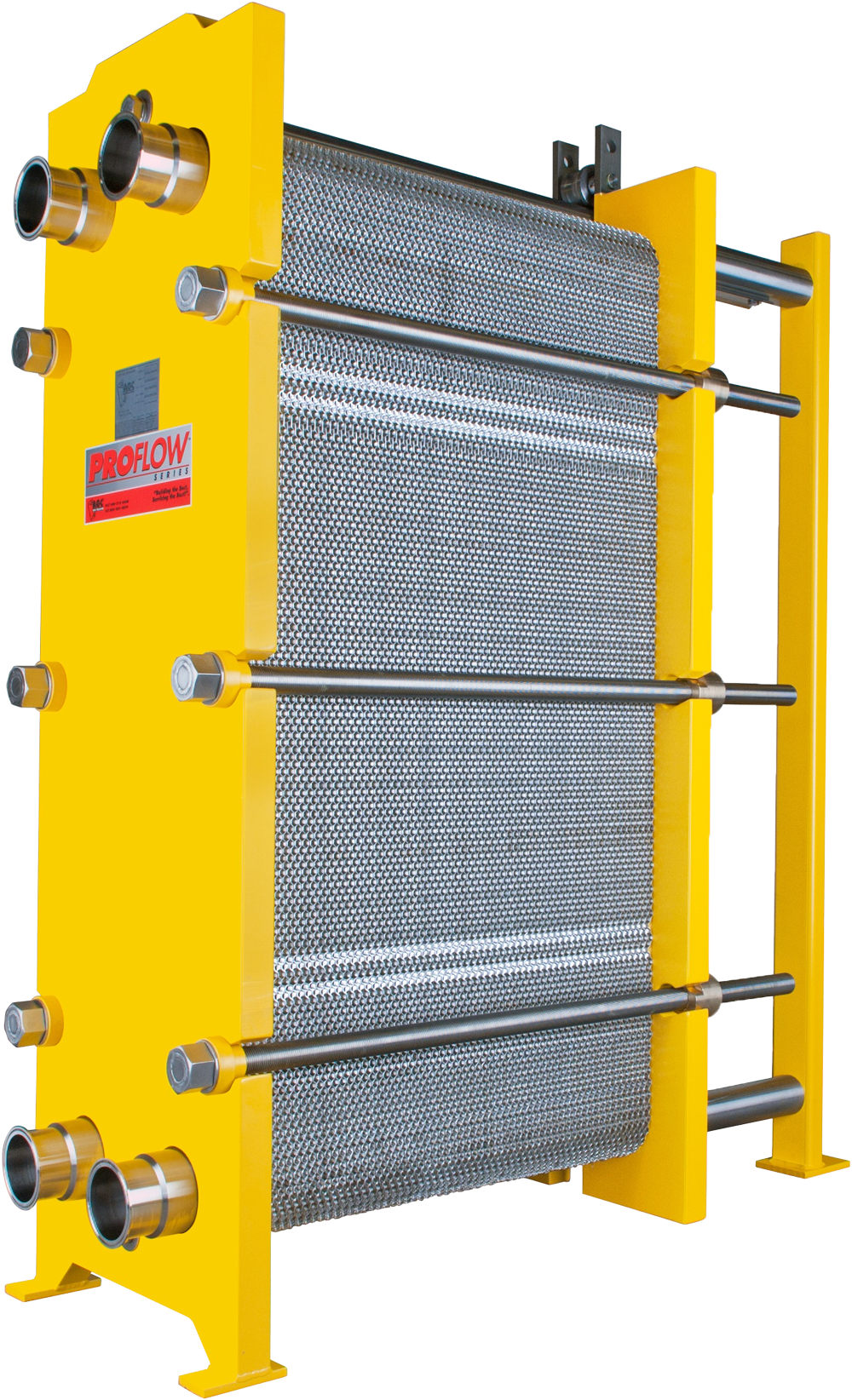

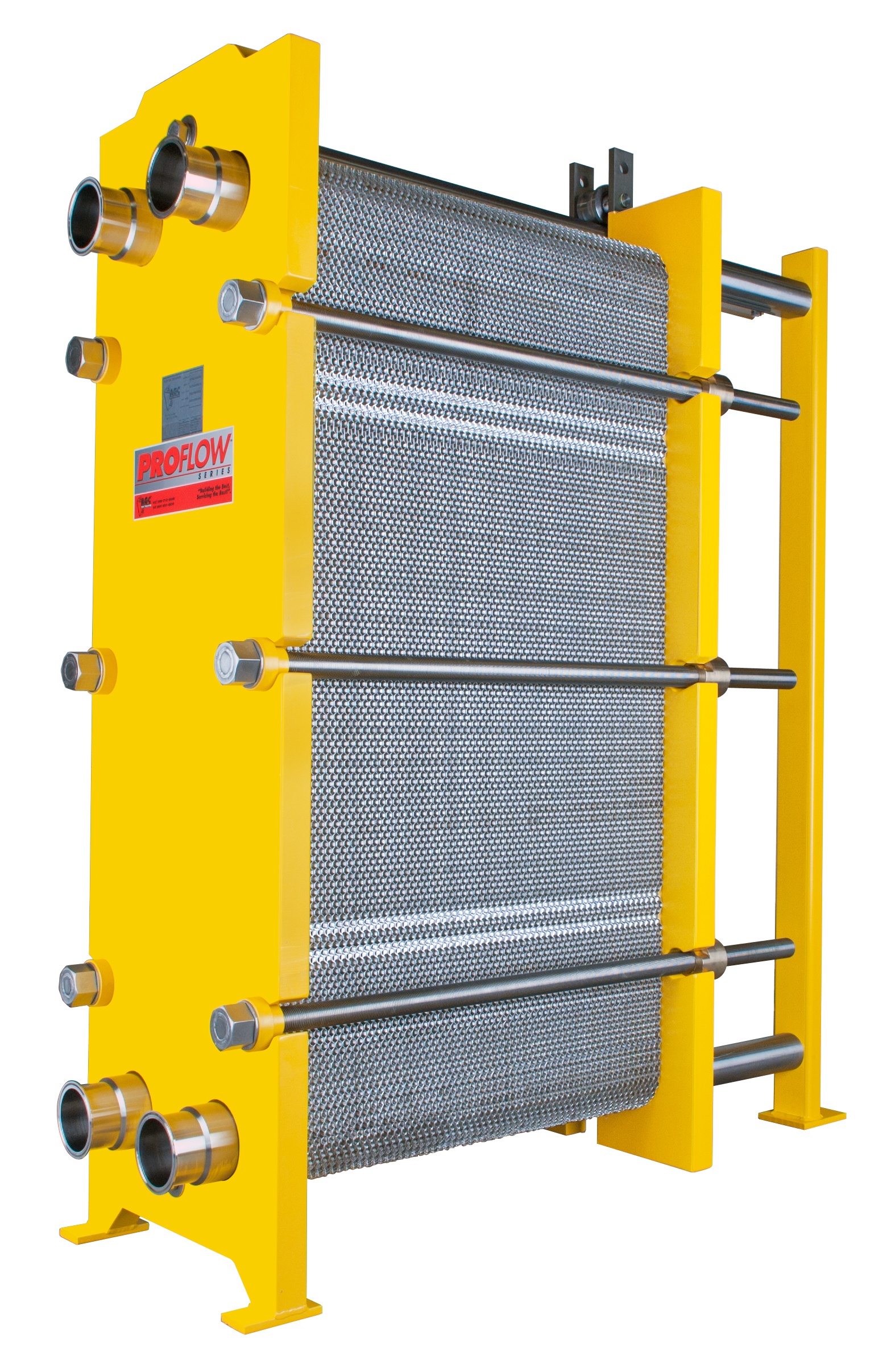

Model AR56-F Frame

QUALITY FEATURES INCLUDE:

  • High Pressure 150 PSIG (10.2 Bar) design
  • Heavy-Duty Powder Coated mild steel frame
  • All eight (8) port openings supplied for future applications
Model AR56-I Frame

Model AR56-I Frame

QUALITY FEATURES INCLUDE:

Model Pro3-F Frame

Model Pro3-F Frame

QUALITY FEATURES INCLUDE:

  • High Pressure 150 PSIG (10.2 Bar) design
  • Heavy-Duty Powder Coated mild steel frame
  • All eight (8) port openings supplied for future applications
Model Pro3-I Frame

Model Pro3-I Frame

QUALITY FEATURES INCLUDE:

Model Pro2-F Frame

Model Pro2-F Frame

QUALITY FEATURES INCLUDE:

  • High Pressure 150 PSIG (10.2 Bar) design
  • Heavy-Duty Powder Coated mild steel frame
  • All eight (8) port openings supplied for future applications
Model Pro2-I Frame

Model Pro2-I Frame

QUALITY FEATURES INCLUDE:

080-F

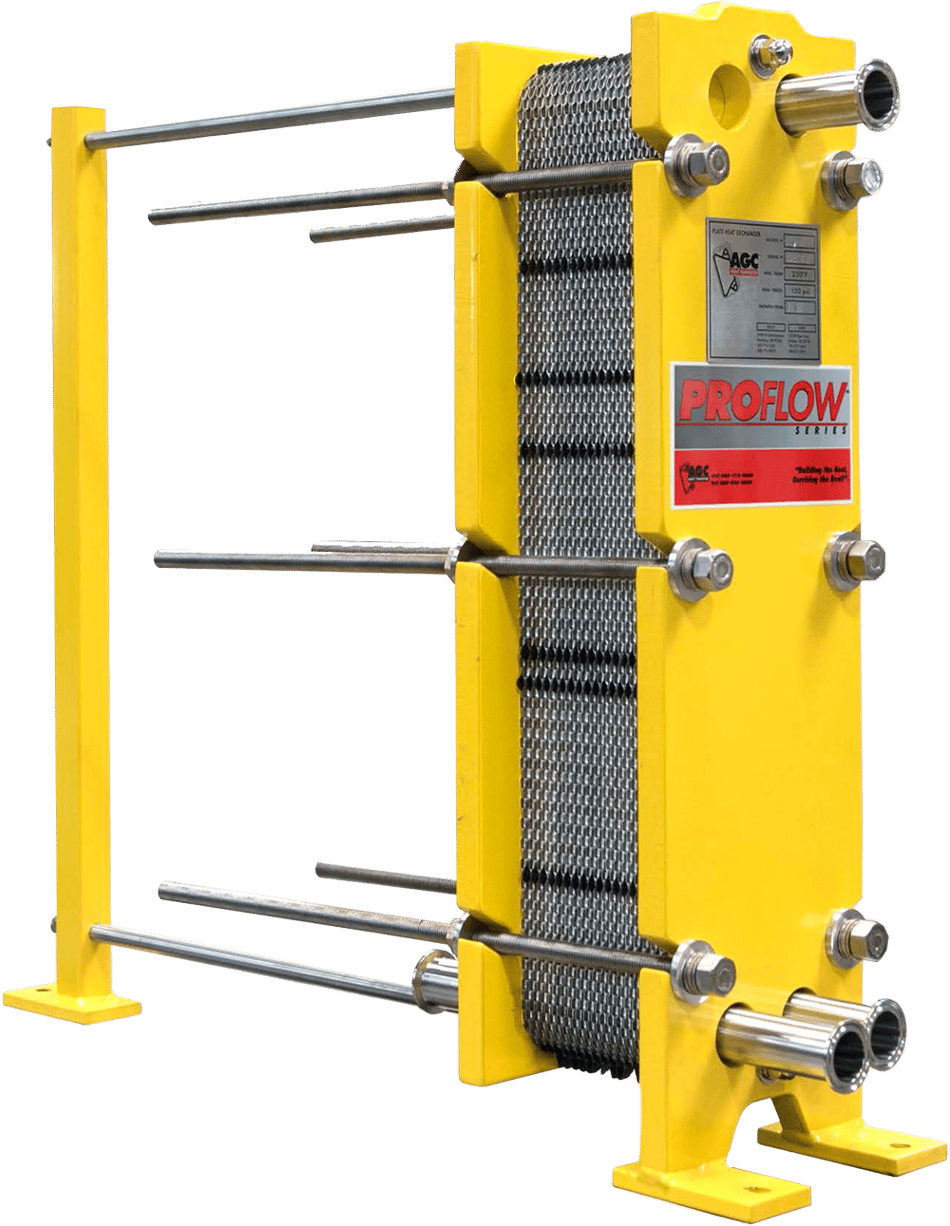

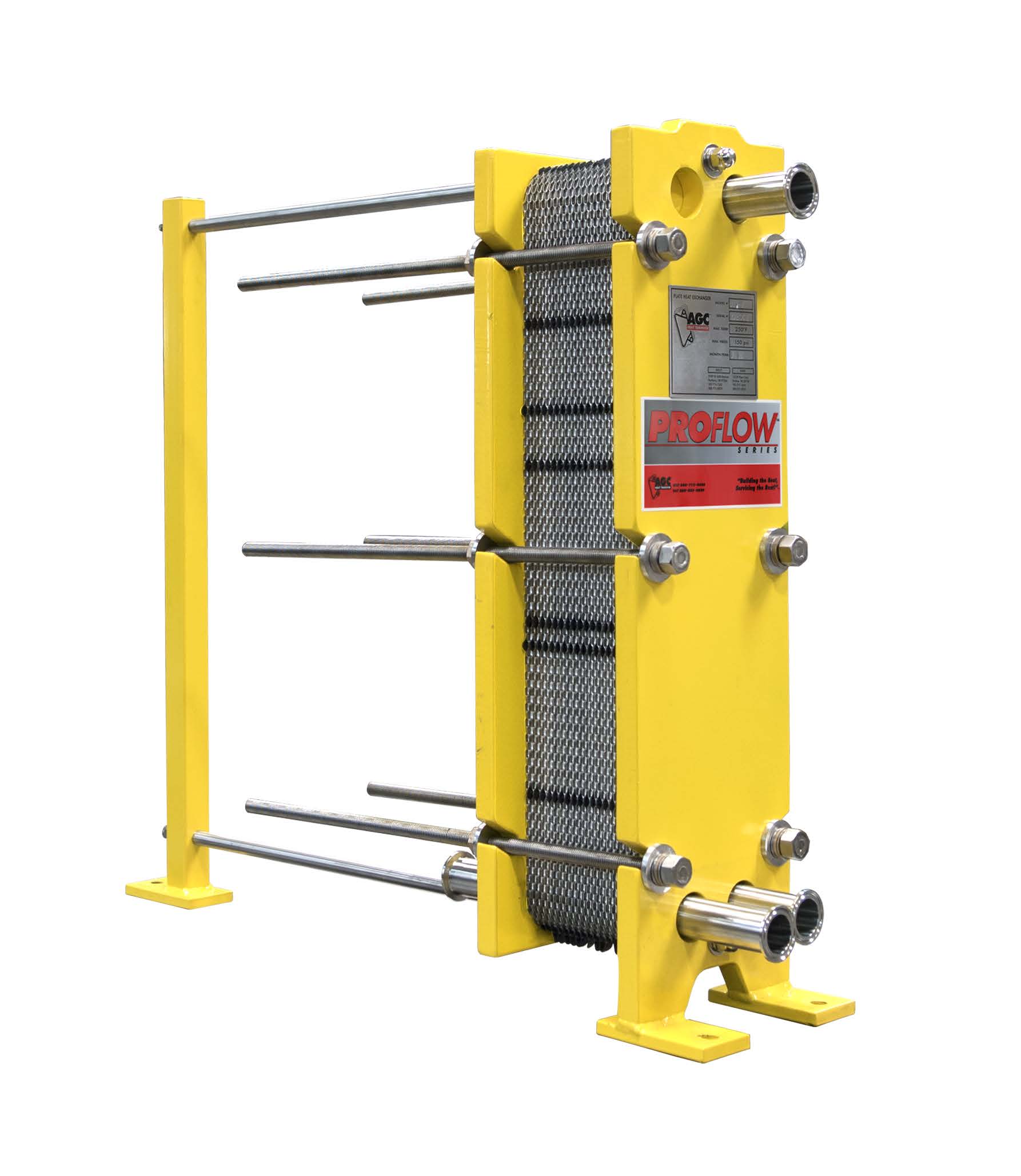

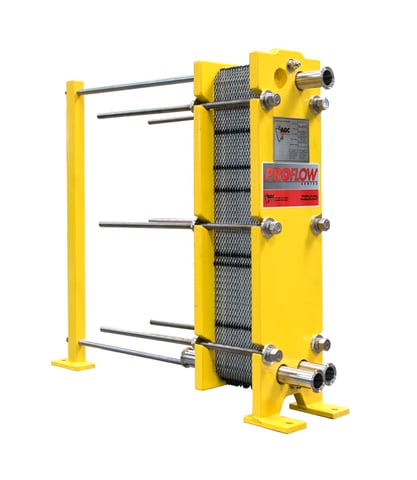

Model 080-F Frame

QUALITY FEATURES INCLUDE:

  • Heavy Duty Powder coated steel frame
  • All eight (8) frame ports for future expansion
  • 316ss product and media connections
  • Stainless steel tie bolts and top/bottom bar
Model 080-I Frame

Model 080-I Frame

QUALITY FEATURES INCLUDE:

Model 041-F Frame

Model 041-F Frame

QUALITY FEATURES INCLUDE:

  • Heavy Duty Powder coated steel frame
  • All eight (8) frame ports for future expansion
  • 316ss product and media connections
  • Stainless steel tie bolts and top/bottom bars
Model 041-I Frame

Model 041-I Frame

QUALITY FEATURES INCLUDE:

Not Sure What's Right For Your Product?

Ask An Expert
