    STAINLESS TIE-BOLT FRAMES - CONSTRUCTION QUALITY WITH HIGH PERFORMANCE

    AGC’s stainless steel clad line of tie-bolt frames have been a staple in sanitary (or hygienic) processing applications such as dairy, food and beverage products. Stainless steel clad units provide superior strength with a higher pressure rating and solid quality of construction of frame components. For example, AGC end support construction is polished tube steel versus thin, channel steel.

    For a more economical approach, with uses in hygienic (or sanitary) and utility applications, AGC’s stainless steel bead blasted frame is a great alternative. With solid stainless steel frame components, it can handle wash down or corrosive applications with ease. At a lower pressure rating, the XP range of frames are a perfect fit for heater / cooler applications and utilities.

    Each style of stainless steel frames use AGC’s ProFlow Series plate design, which provide designs for food specific processing applications. In addition, both have hygienic design features such as:

    • 3-A compliance
    • Adjustable ball feet
    • High and low leg designs
    • Snap-in, glueless gaskets

    Below, see how AGC’s line of stainless steel tie-bolt frames can help you process. If you need help reviewing your requirements, contact us.

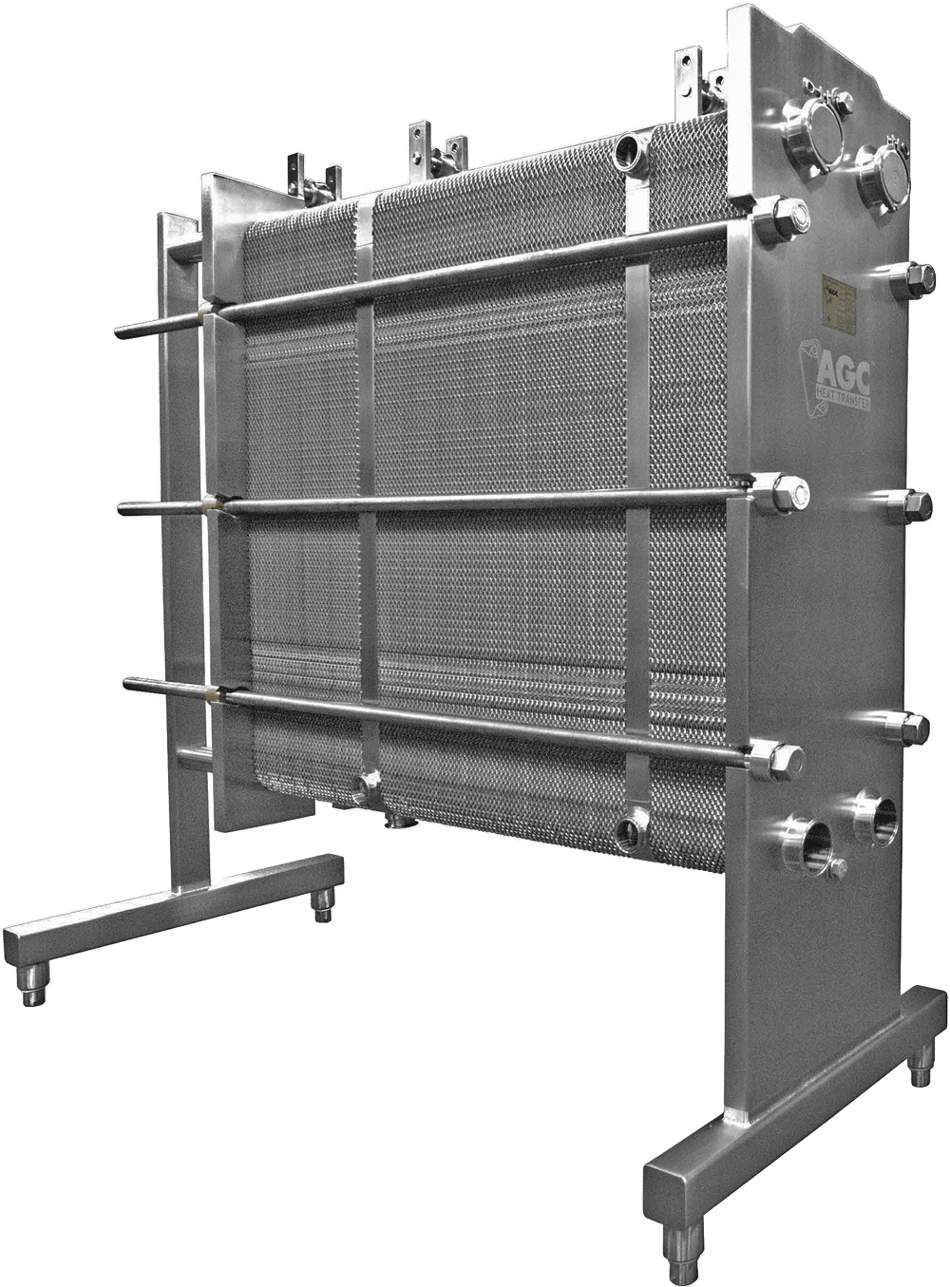

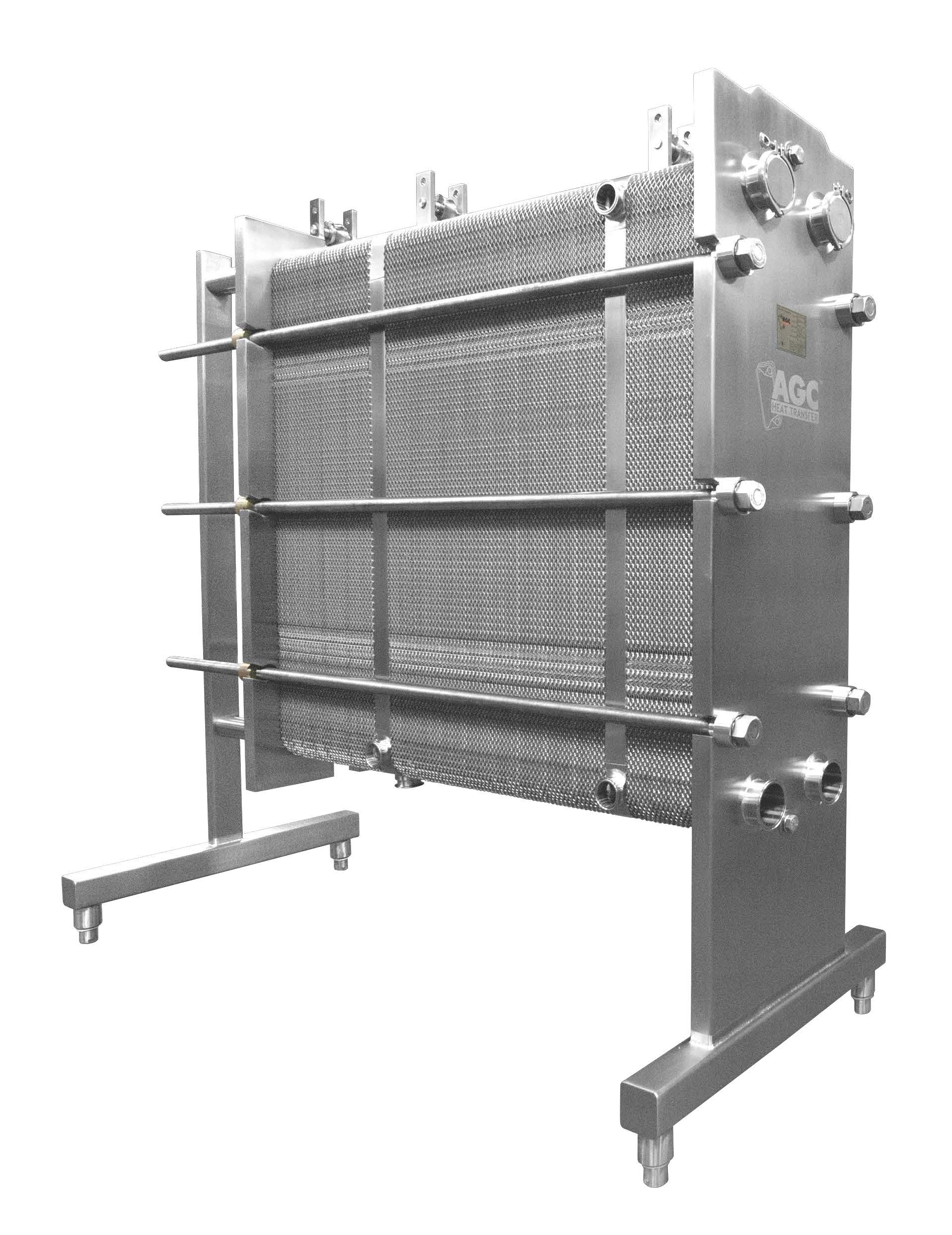

    Model AR56-SH Frame

    Model AR56-SH Frame

    Quality Features Include:

    • High Pressure 200 PSIG (13.6 Bar) design
    • Sanitary bead blasted finish
    • All eight (8) ports supplied for future application
    • Available in low leg AR56-S version
    • 2-1/2″ and 4″ Terminal dividers available
    • Heavy Wall Ports to resist cracks
    • Parts interchangeable with your existing R56-SH/200 frames
    • Meets current 3-A specifications
    • Two plate styles to choose from
    Download Spec Sheet

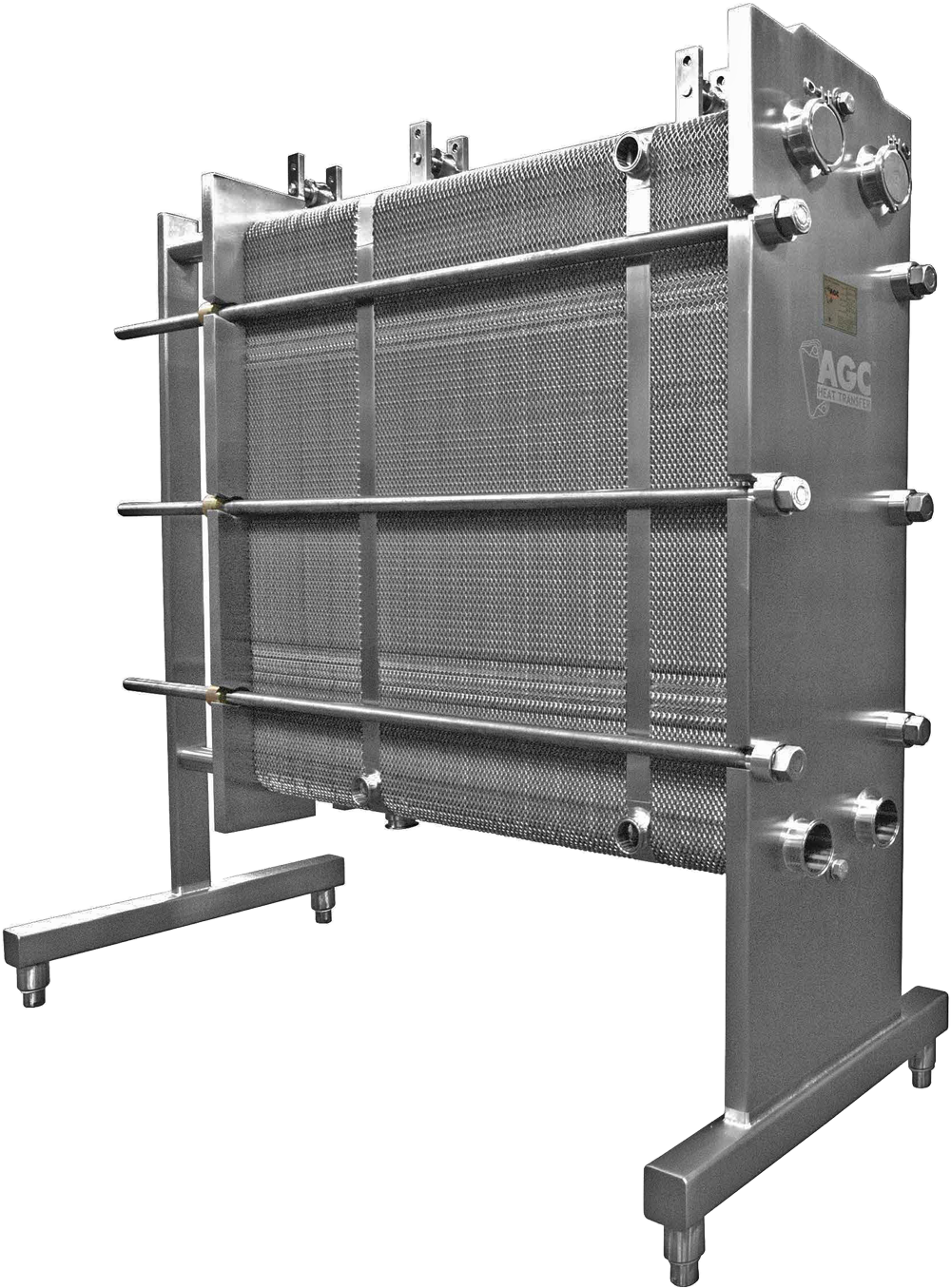

    Model AR56-S Frame

    Model AR56-S Frame

    Quality Features Include:

    • High Pressure 200 PSIG (13.6 bar) design
    • Sanitary bead blasted finish
    • Available in high leg AR56-SH version
    • 2-1/2″ and 4″ Terminal dividers available
    • Heavy Wall Ports to resist cracks
    • Parts interchangeable with your existing R56-S frames
    • Meets current 3-A specifications
    • Two plate styles to choose from
    • Optional features included
    • Removable stainless steel or other alloy inserts available
    Download Spec Sheet

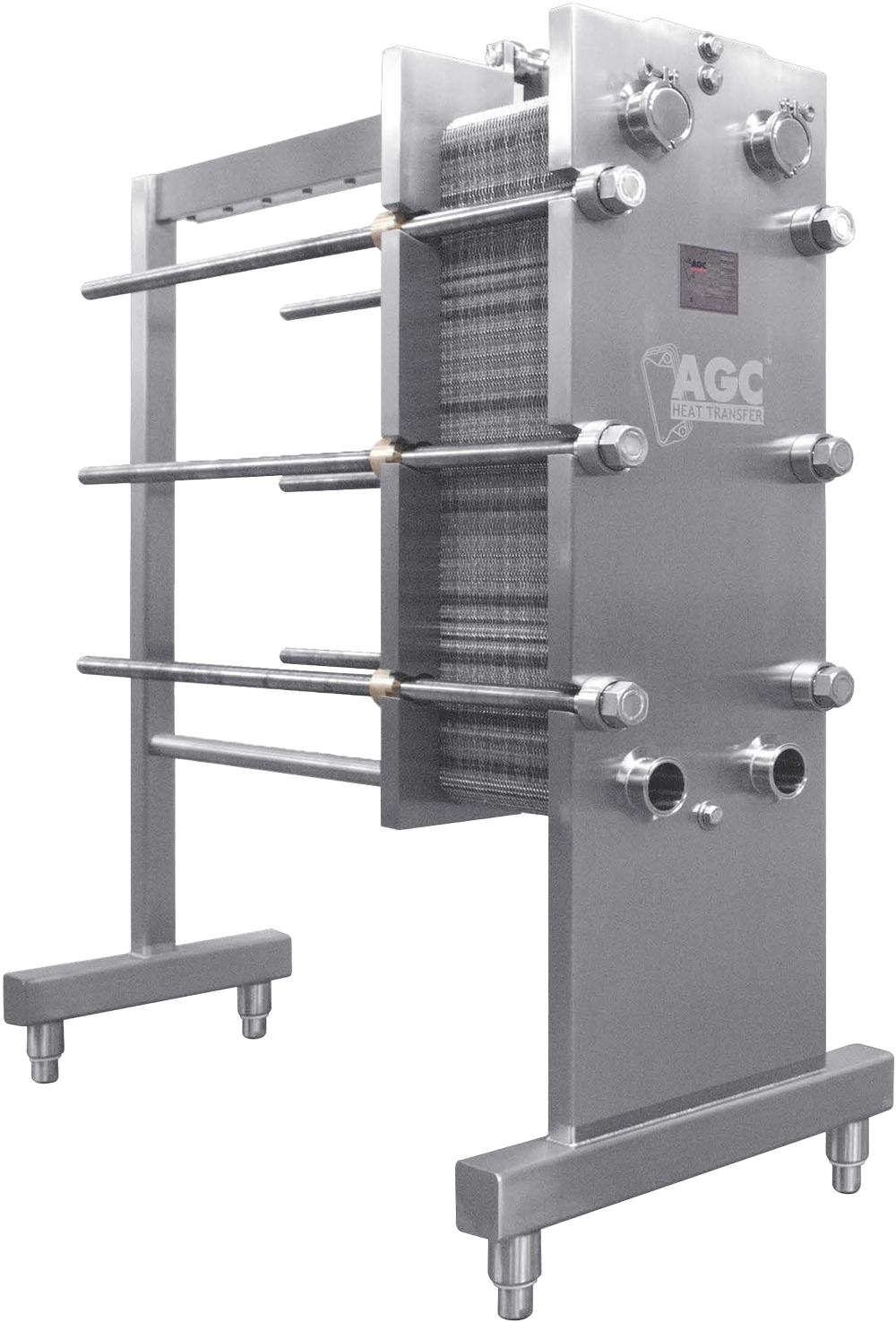

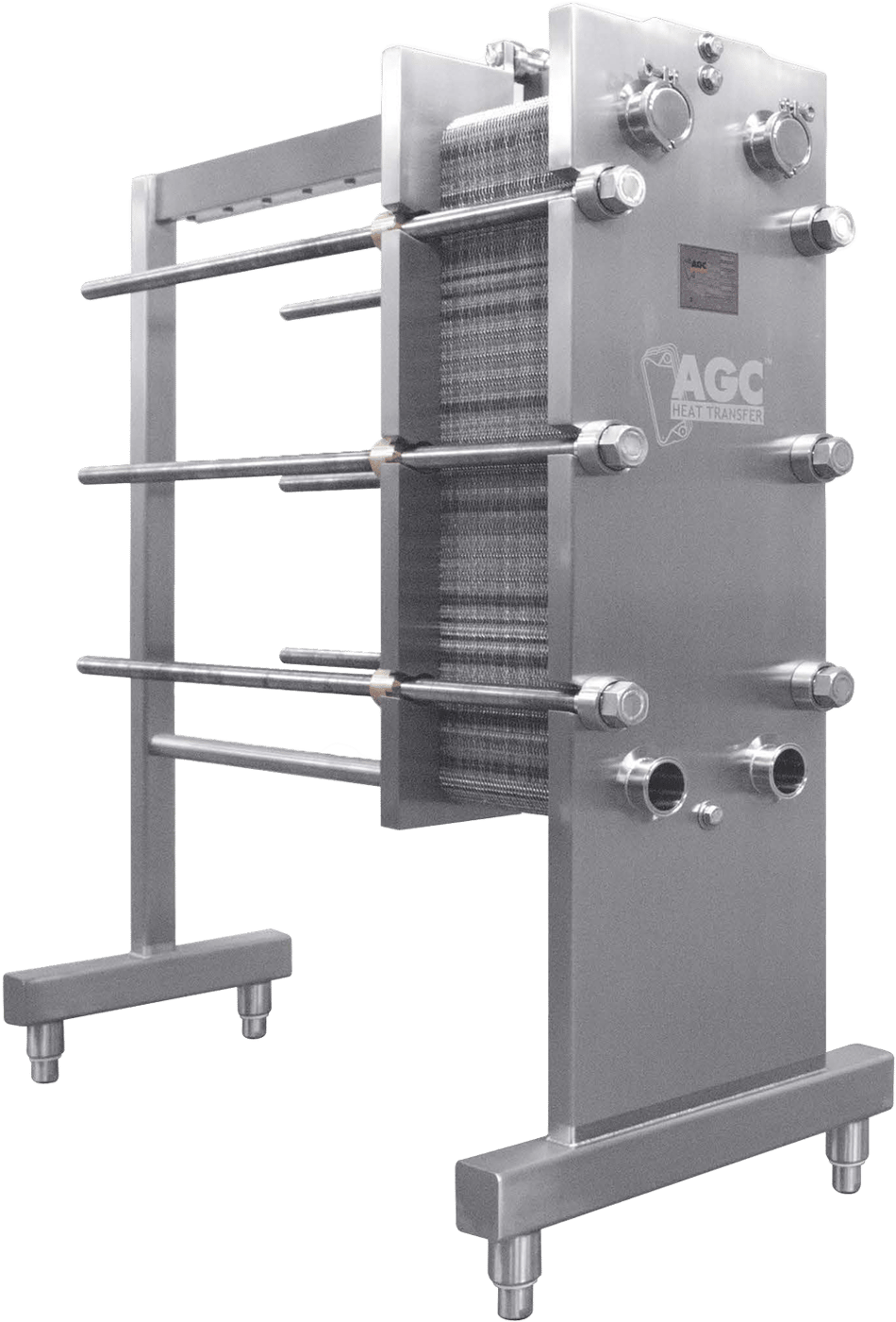

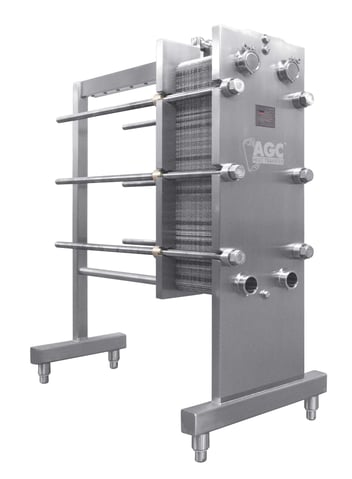

    Model Pro3-SH Frame

    Model Pro3-SH Frame

    Quality features include:

    • High Pressure 200 PSIG (13.6 bar) design
    • Sanitary bead blasted finish
    • 2-1/2″ Terminal dividers available
    • Heavy Wall Ports to resist cracks
    • Available in low leg PRO3-S version
    • Parts interchangeable with your existing SR350-S frames
    • Meets current 3-A specifications
    Download Spec Sheet

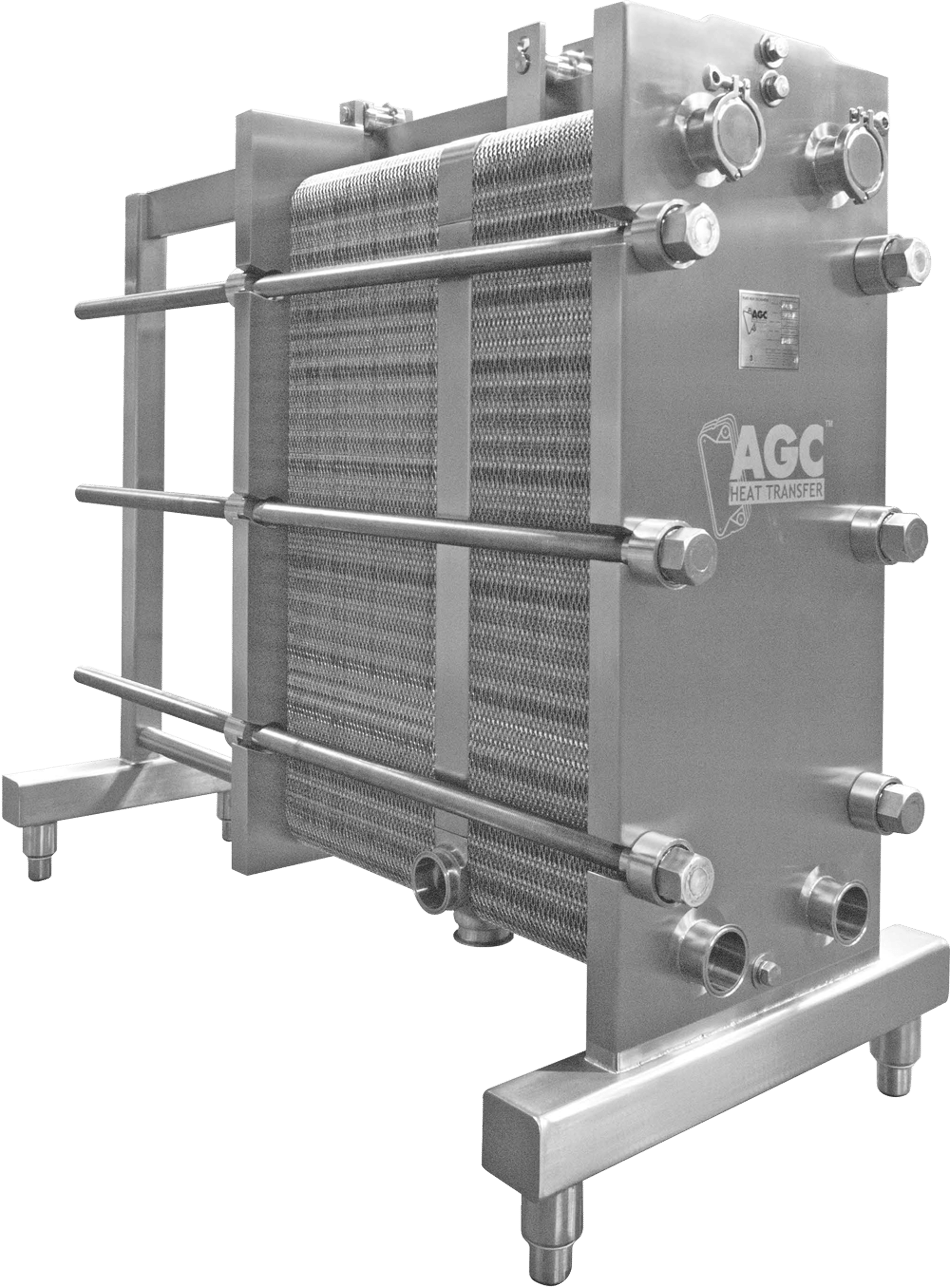

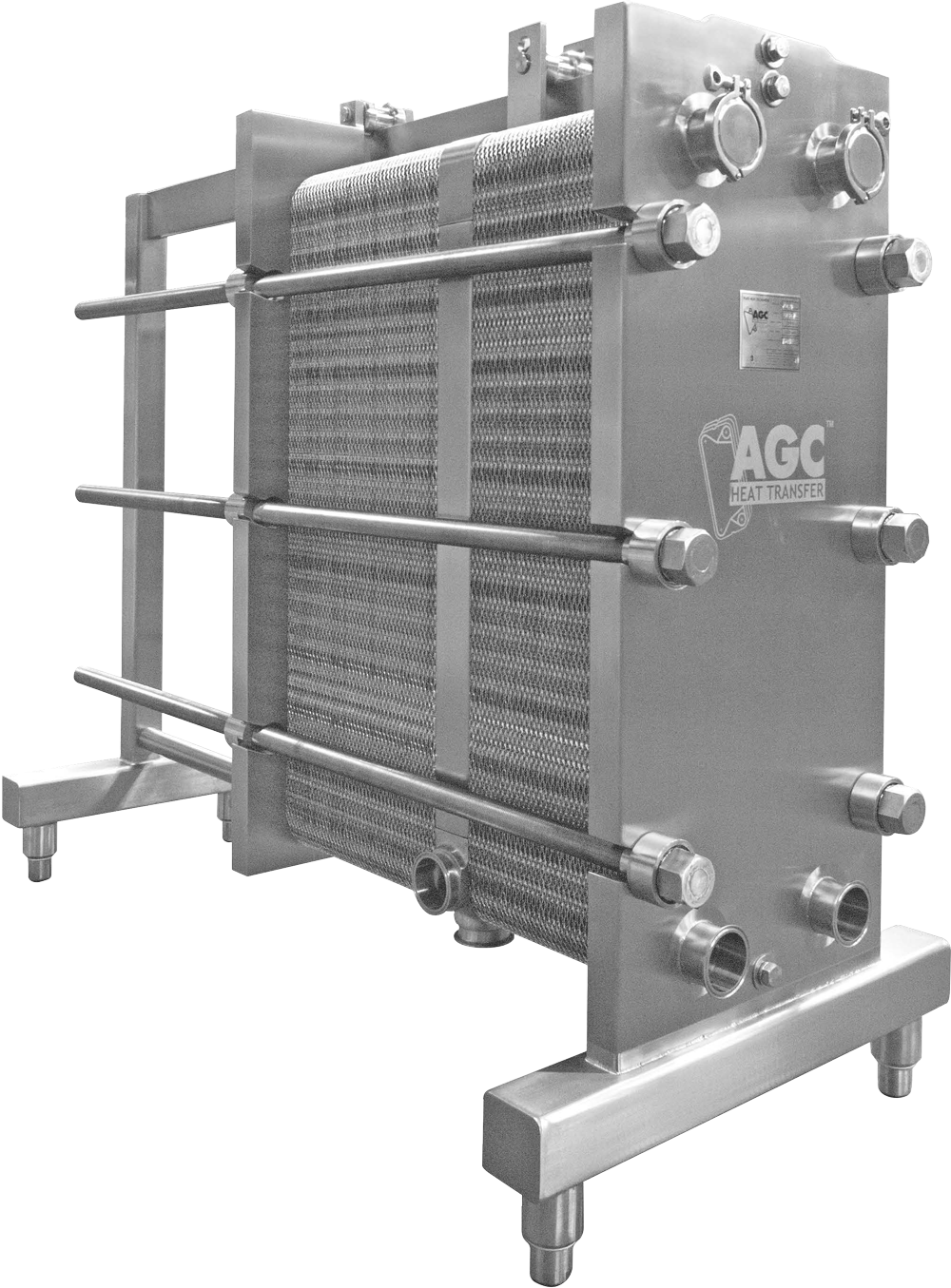

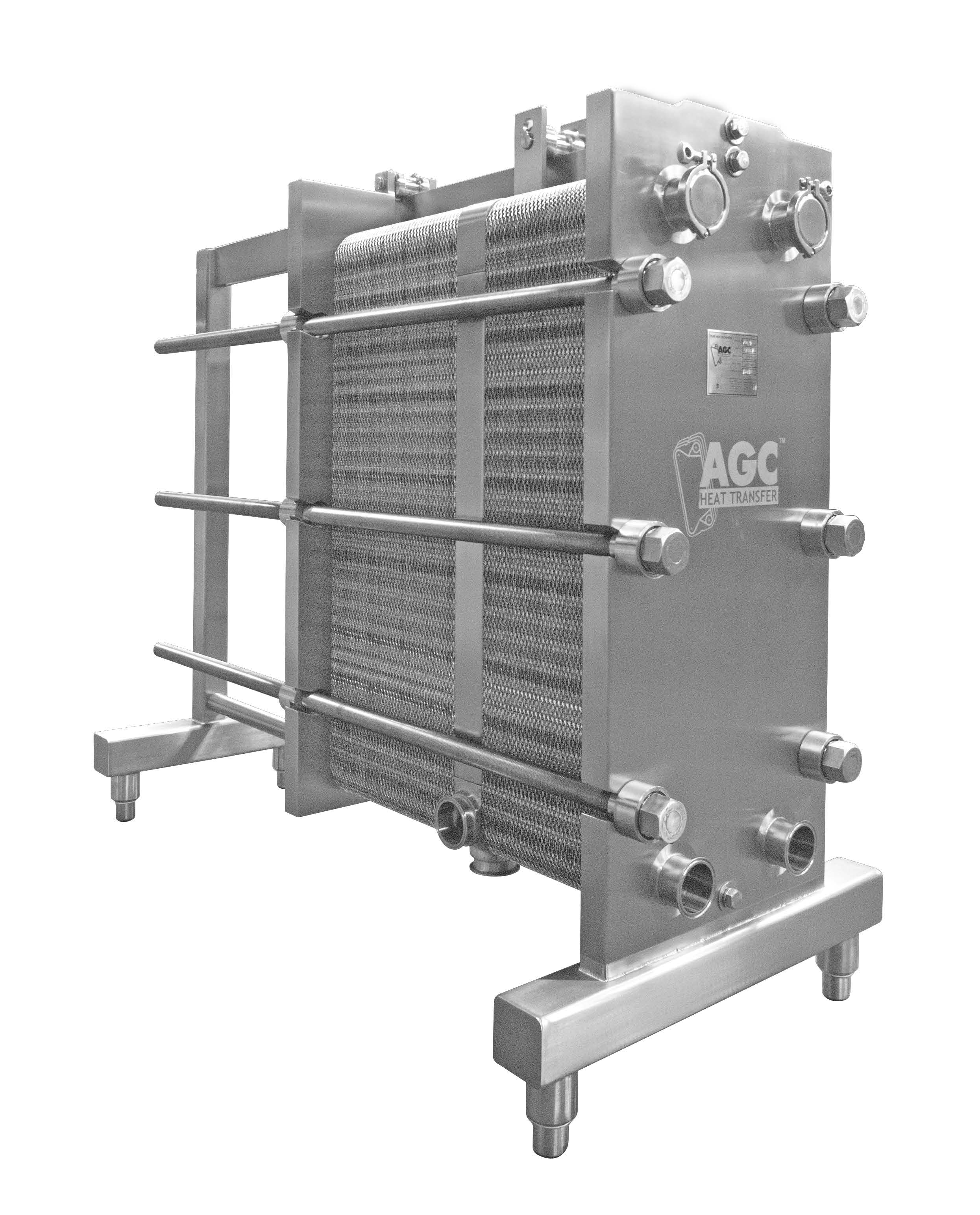

    Model Pro3-S Frame

    Model Pro3-S Frame

    Quality Features Include:

    • High Pressure 200 PSIG (13.6 bar) design
    • Sanitary bead blasted finish
    • 2-1/2″ Terminal dividers available
    • Heavy Wall Ports to resist cracks
    • Available in high leg PRO3-SH version
    • Parts interchangeable with your existing SR350-S frames
    • Meets current 3-A specifications
    Download Spec Sheet

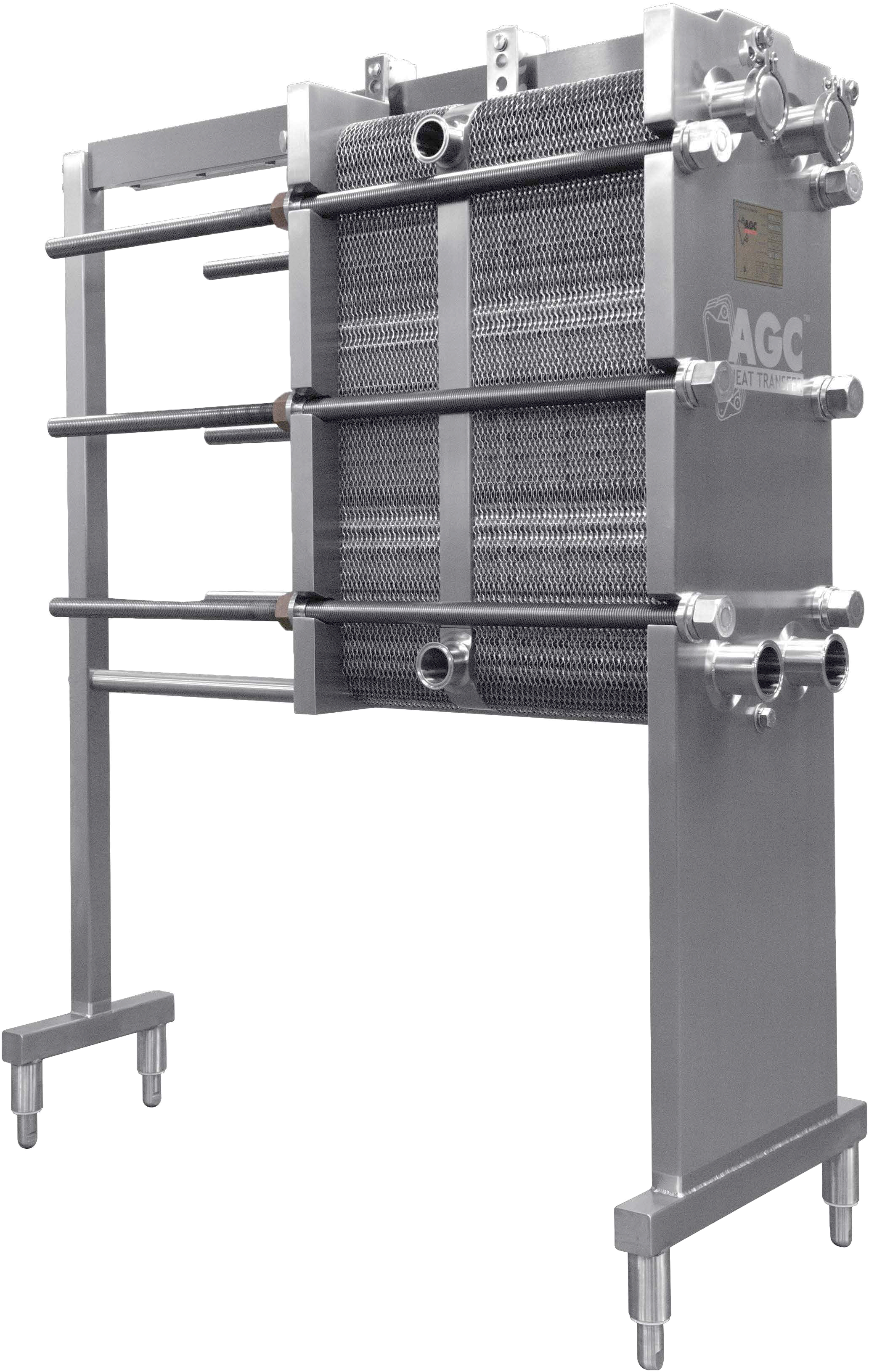

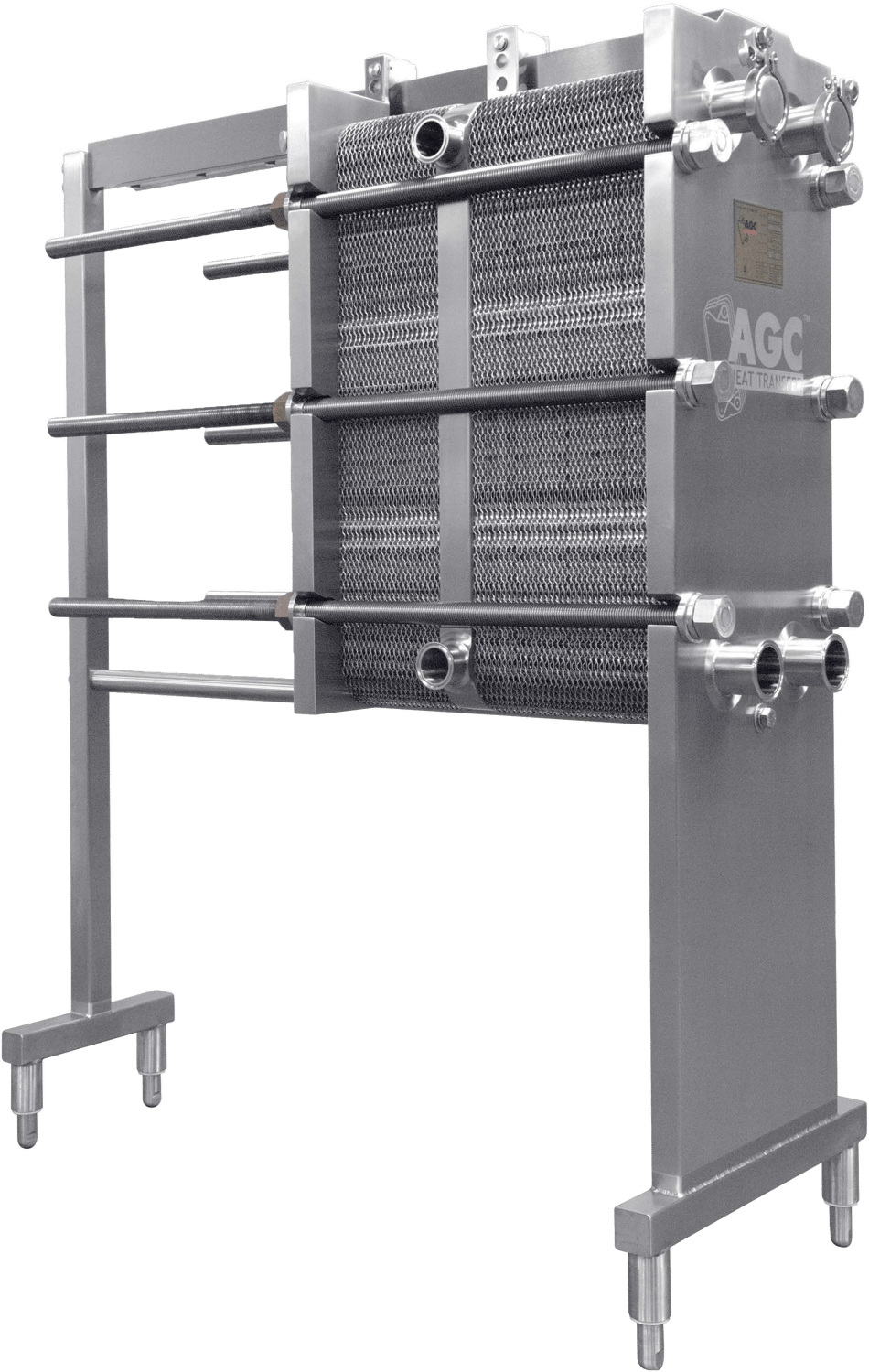

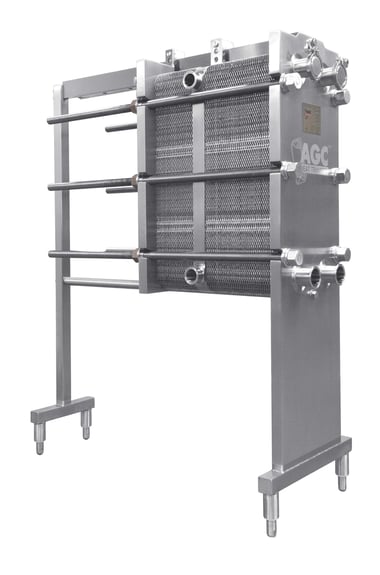

    Model Pro2-SH Frame

    Model Pro2-SH Frame

    Quality Features Include:

    • High Pressure 200 PSIG (13.6 Bar) design
    • Sanitary bead blasted finish
    • All eight (8) port supplied for future applications
    • Heavy duty cladded frame with sanitary bead blasted finish
    • Available in low leg PRO2-S version
    • Meets 3-A specifications
    • Made In the USA
    Download Spec Sheet

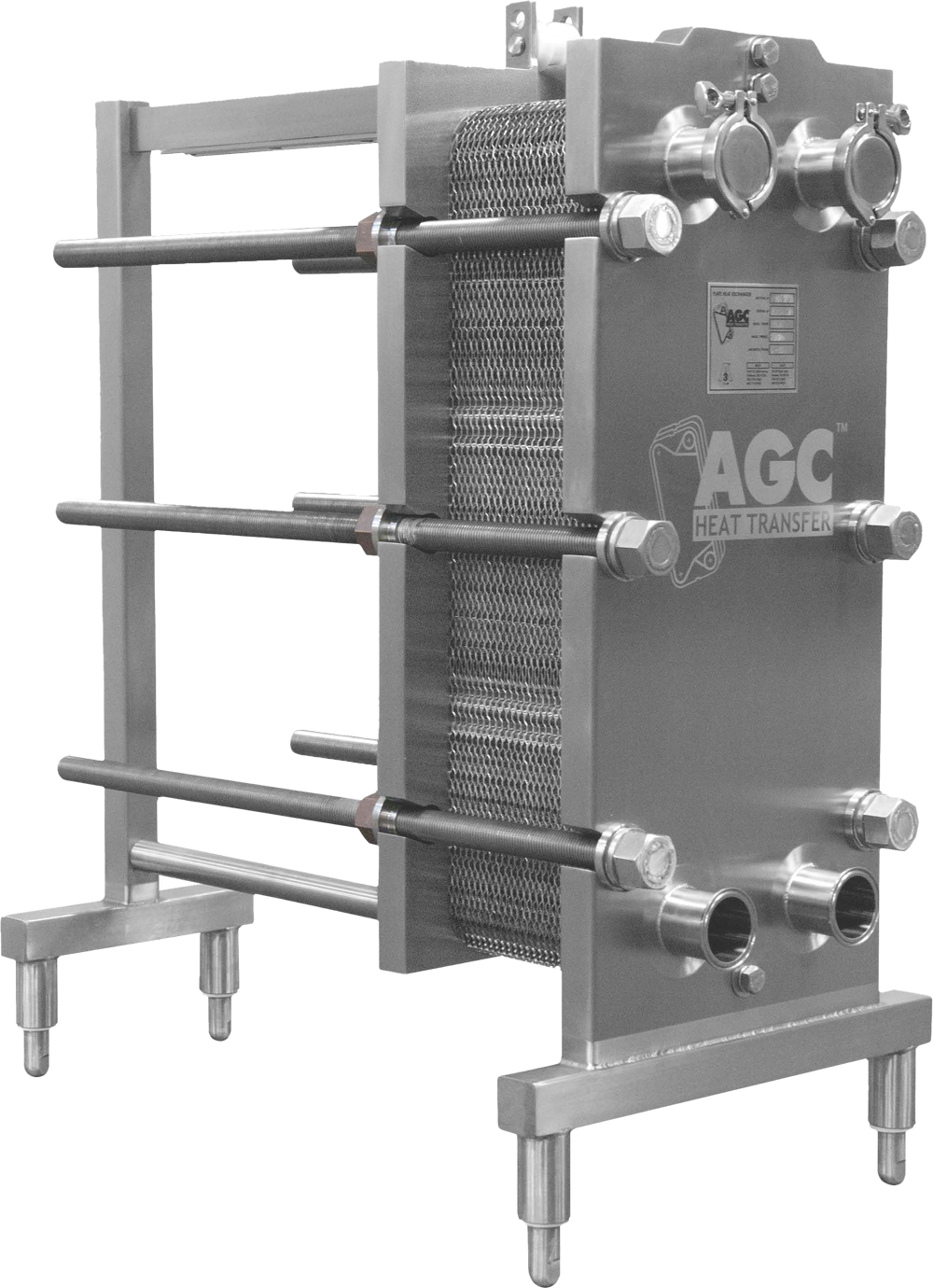

    Model Pro2-S Frame

    Model Pro2-S Frame

    Quality Features Include:

    • High Pressure 200 PSIG (13.6 Bar) design
    • All eight (8) port supplied for future applications
    • Available in high leg PRO2-SH version
    • Heavy duty cladded frame with sanitary bead blasted finish
    • Meets 3-A specifications
    Download Spec Sheet
    Model 300-S Frame

    Model 300-S Frame

    Quality Features Include:

    • High Pressure 150 PSIG (10.2 Bar) design
    • Sanitary bead blasted finish
    • All eight (8) port supplied for future applications
    • Heavy duty cladded frame with sanitary bead blasted finish
    Download Spec Sheet

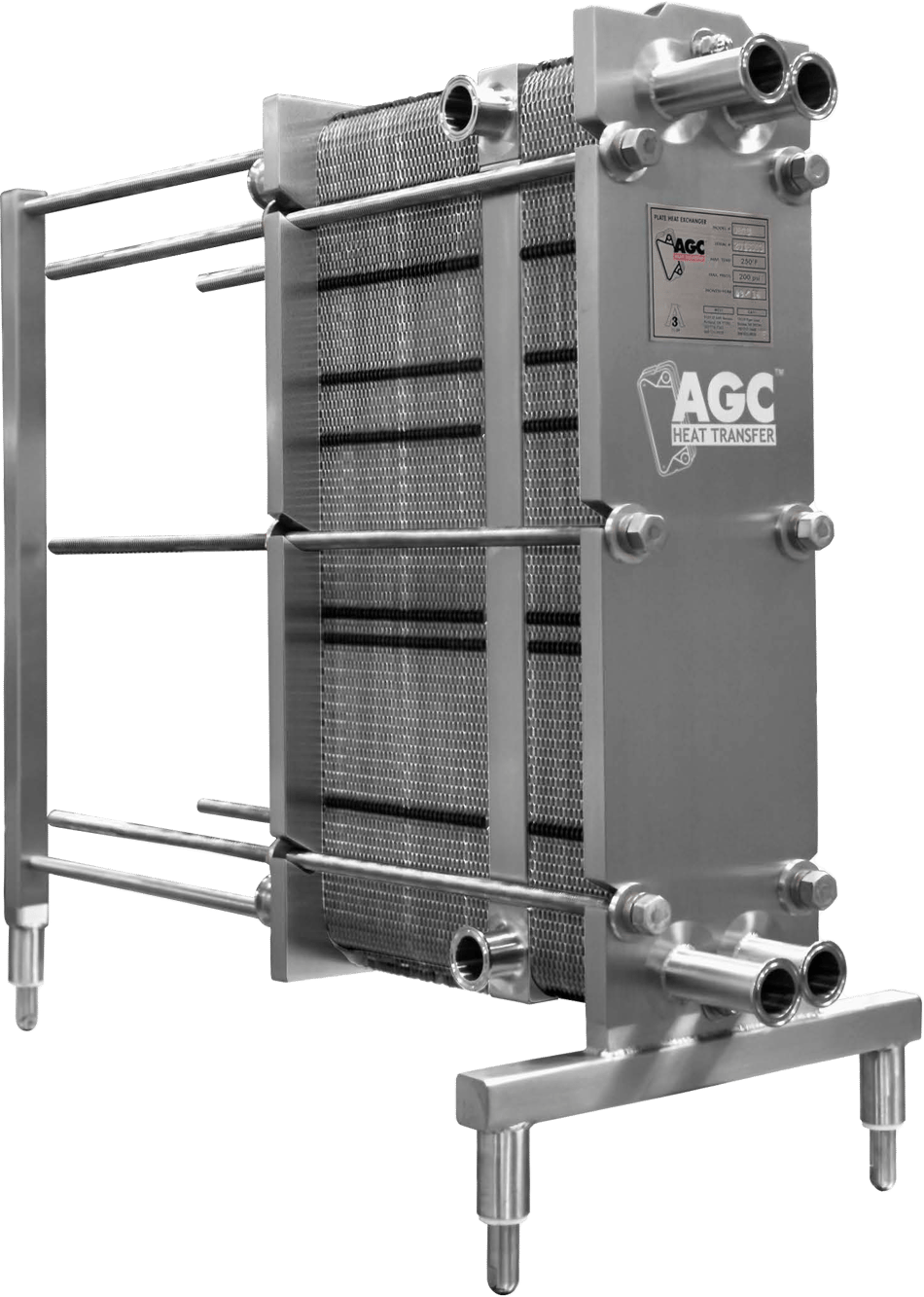

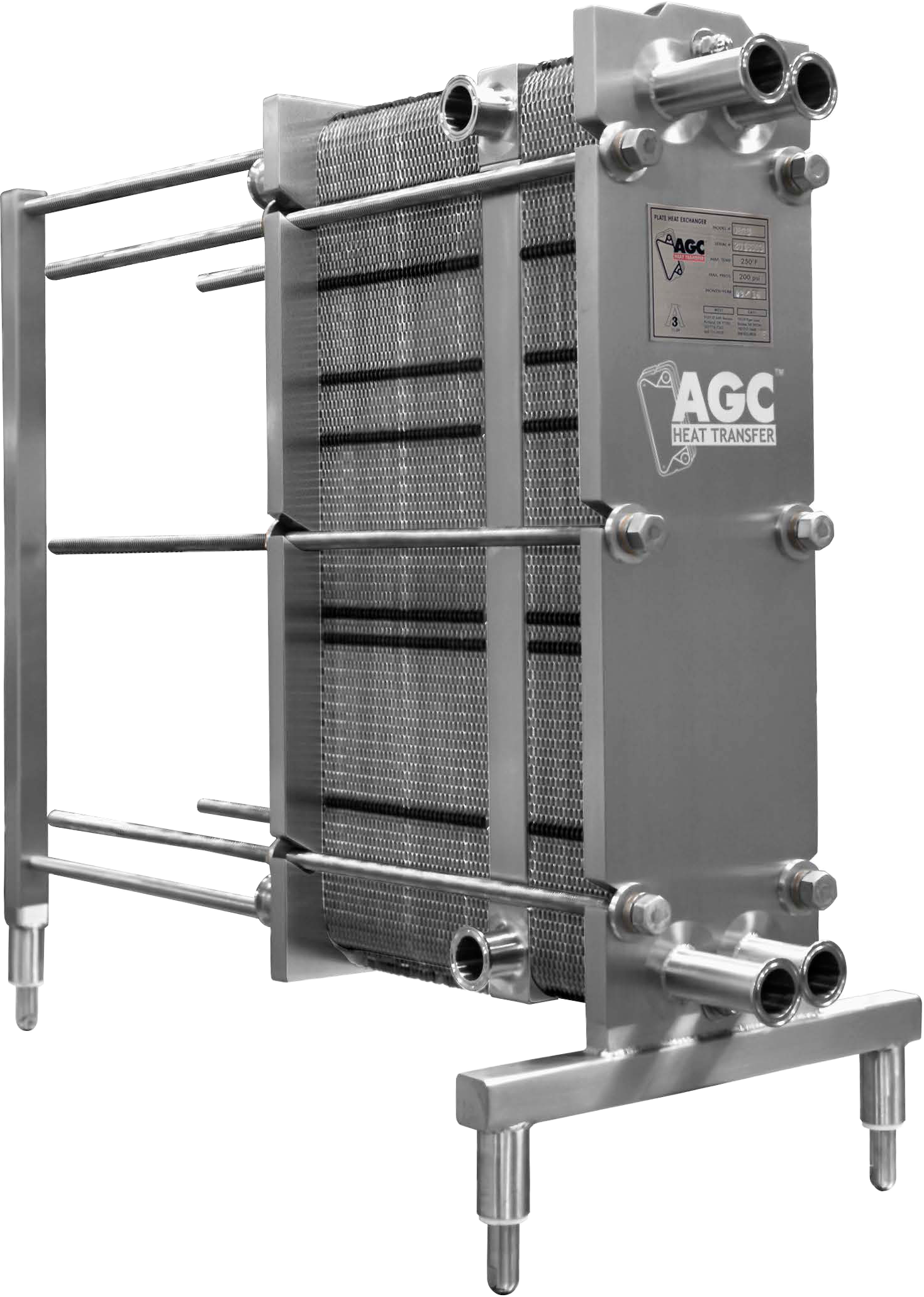

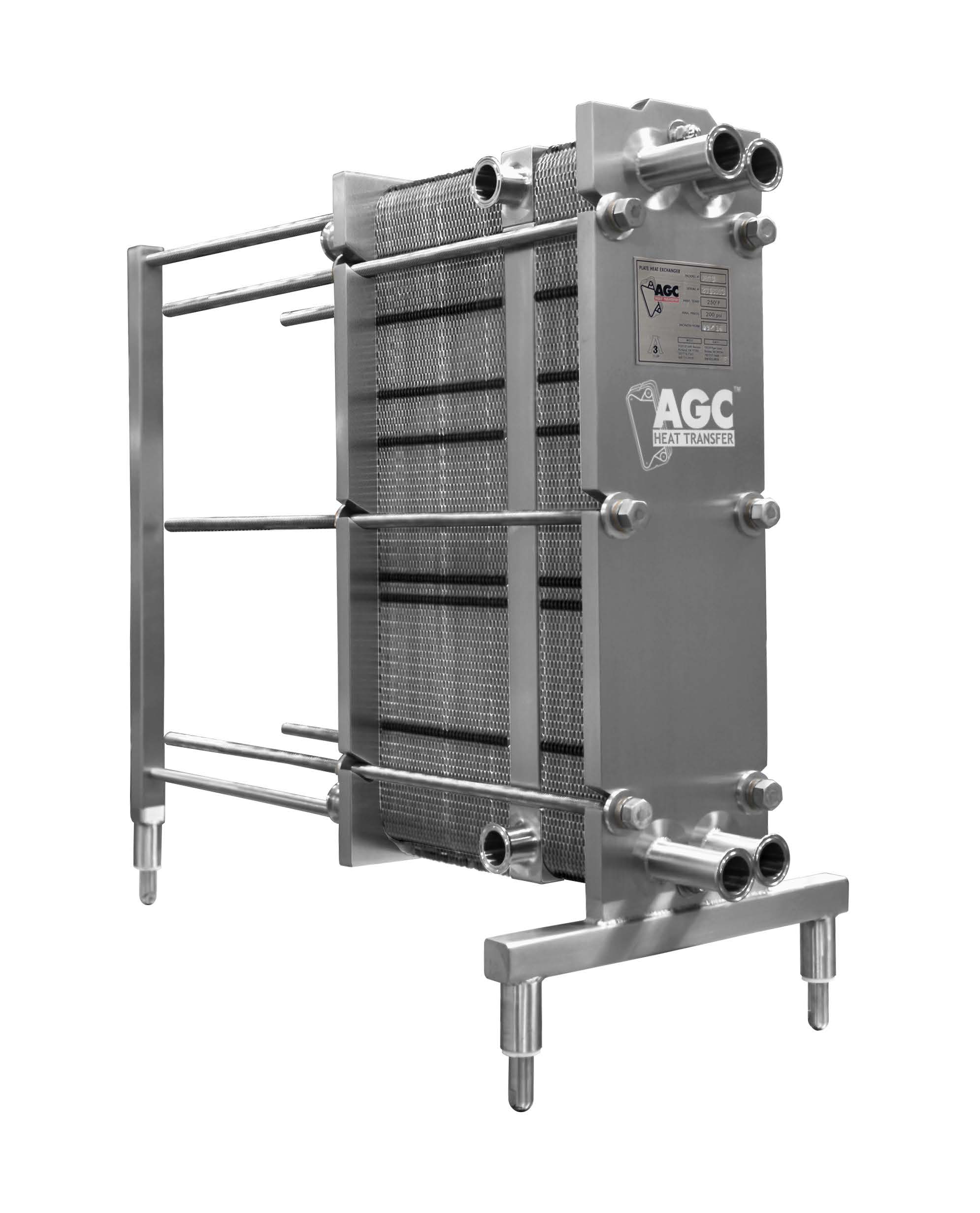

    Model 080-S Frame

    Model 080-S Frame

    Quality Features Include:

    Download Spec Sheet

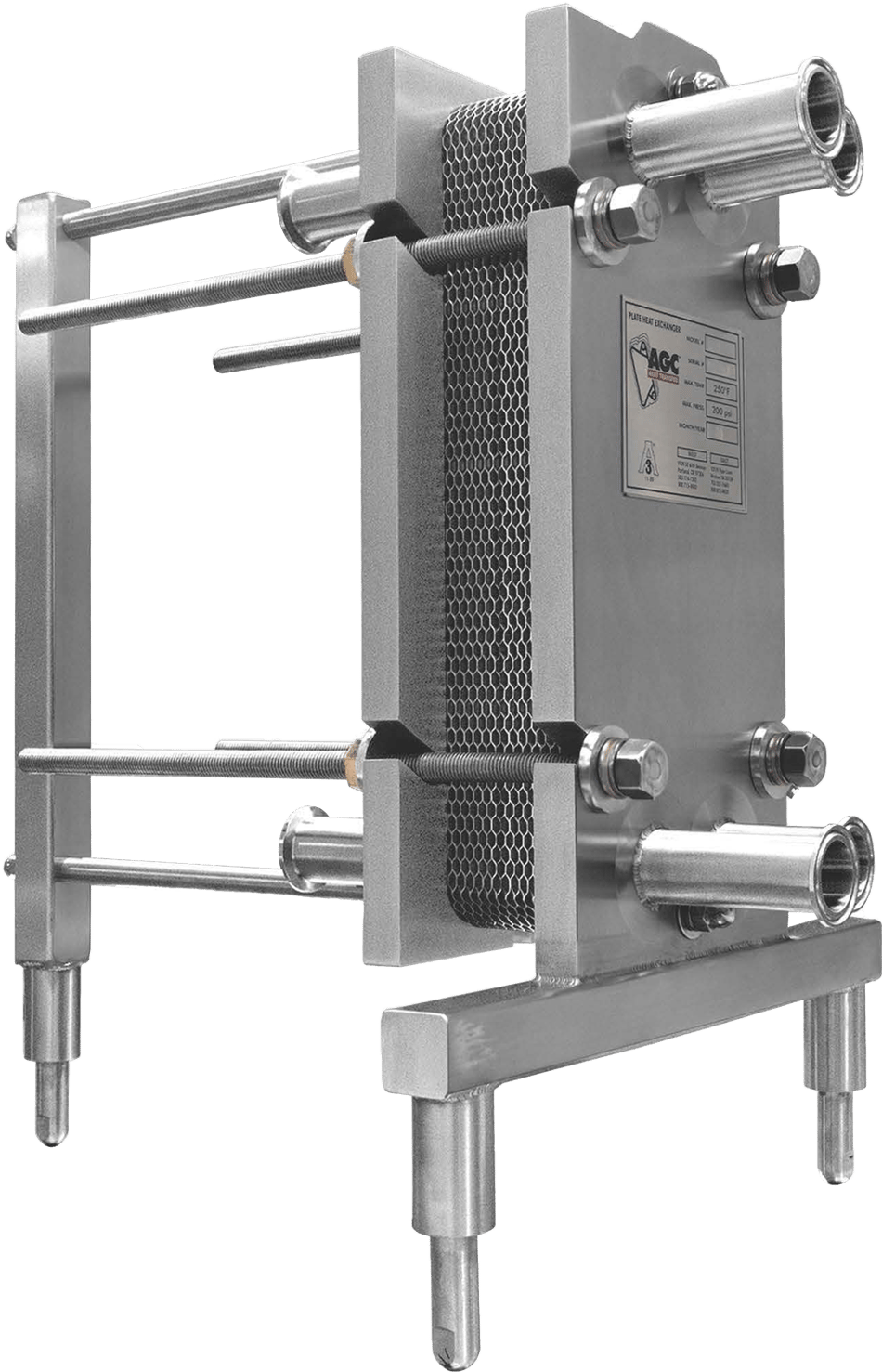

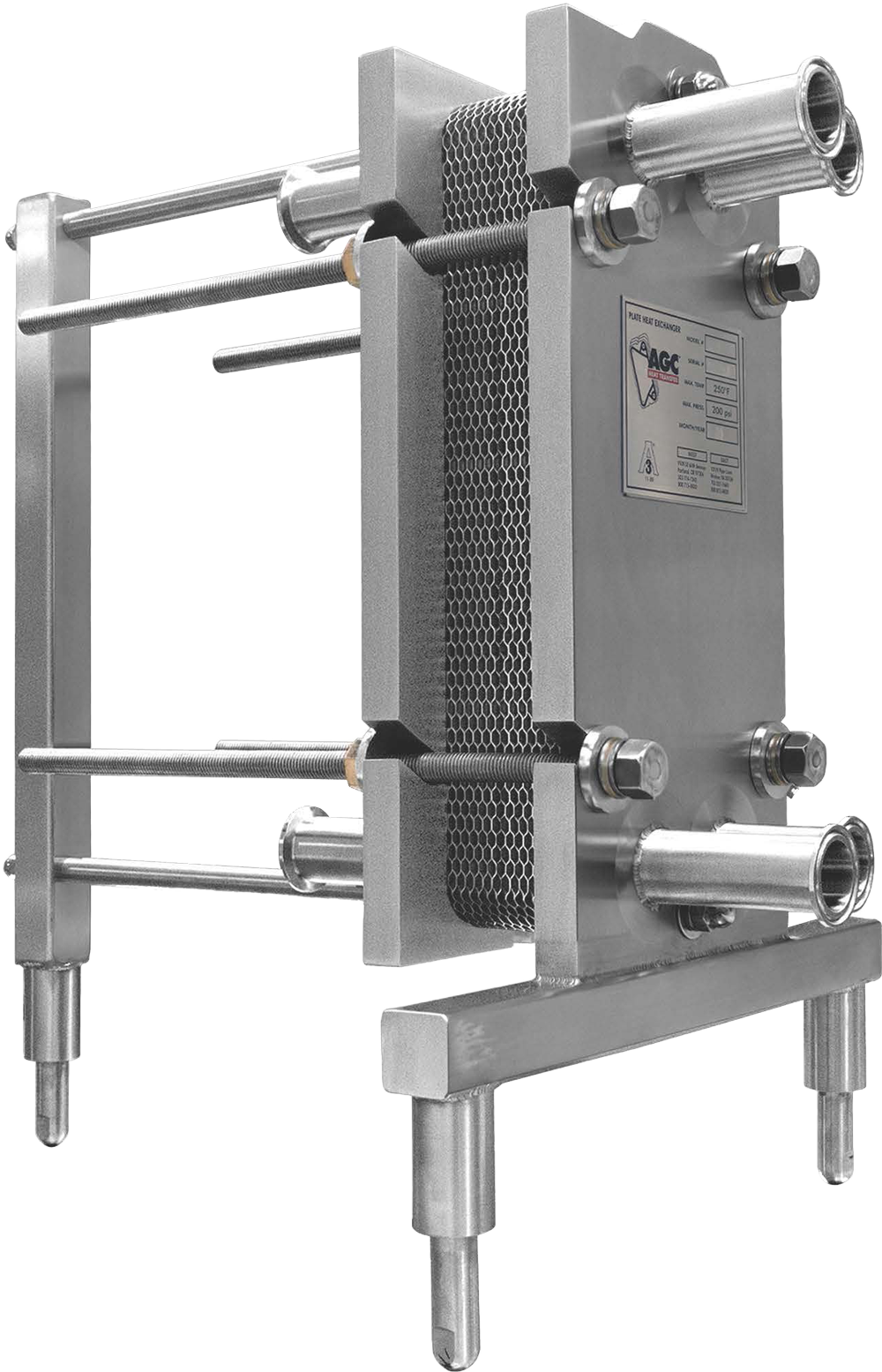

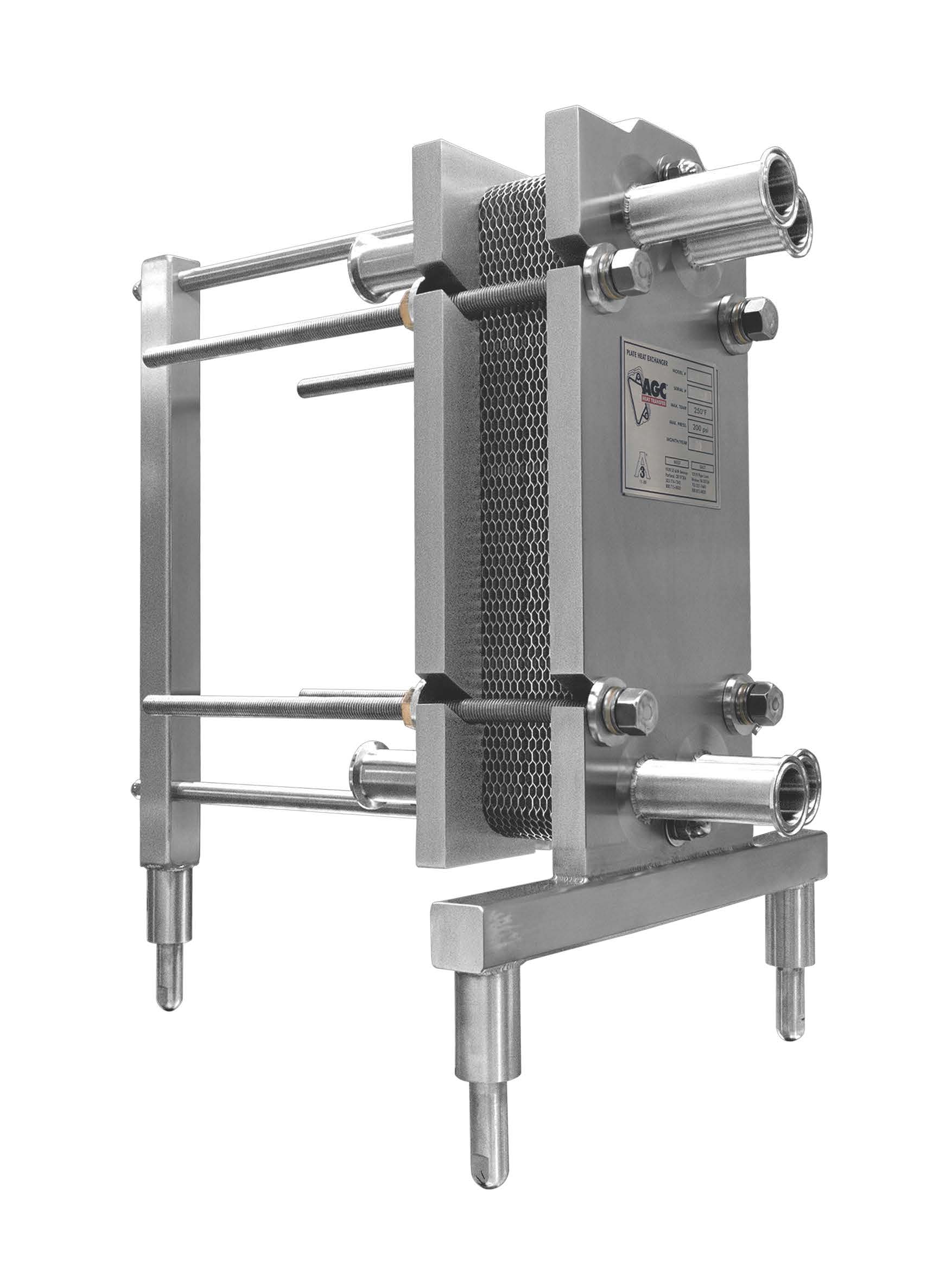

    Model 041-S Frame

    Model 041-S Frame

    Quality Features Include:

    • High Pressure 150 PSIG (10.2 Bar) design
    • Heavy-Duty Powder Coated mild steel frame
    • All eight (8) port openings supplied for future applications
    Download Spec Sheet
