Automatic Closure - Uptime, Safety & Performance

The heat exchanger in many processing operations is the relief point of a processing system. When unexpected plant changes occur during the processing day, repair to the heat exchanger becomes a requirement. Replacement of gaskets or plates takes minutes versus hours with a hydraulic opening / closing frame. Your operation can be back up and running quickly to optimize your production run time, saving you thousands of dollars each year.

In addition to performance, every production operation is concerned and focused on safety. Compared to tie-bar and manual twin spindle frames, hydraulic closure frames take no manual labor, making opening and closing simple. One lever controls the hydraulics to automatically open / close your frame to the precise compressed dimension – every time. Ensuring even closure and providing easy access for routine maintenance and inspection of your heat exchanger will extend the life of your investment.

Below, you can begin to explore AGC’s line of hydraulic frames or if you need help deciding the right model for you, contact us.

AR51-D

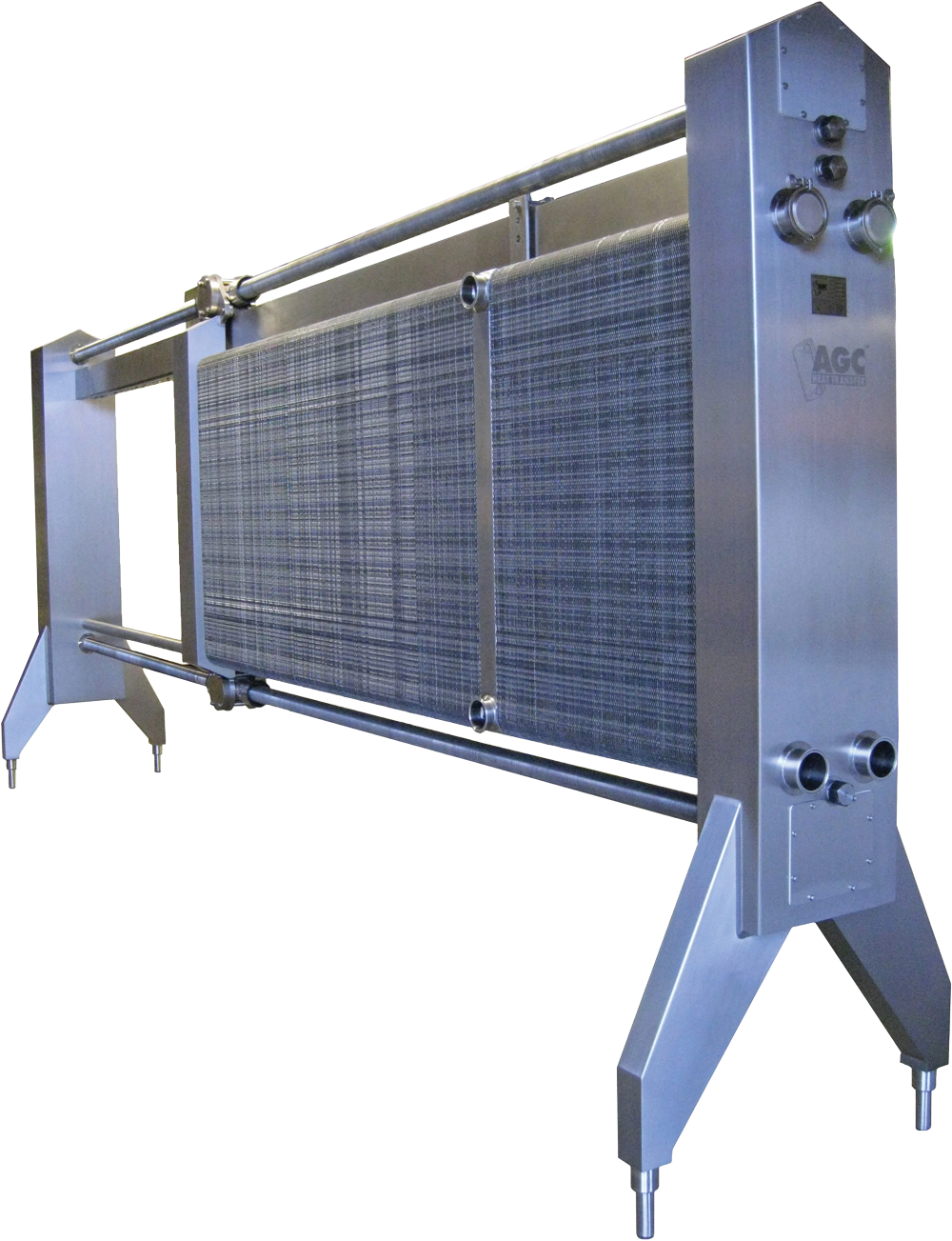

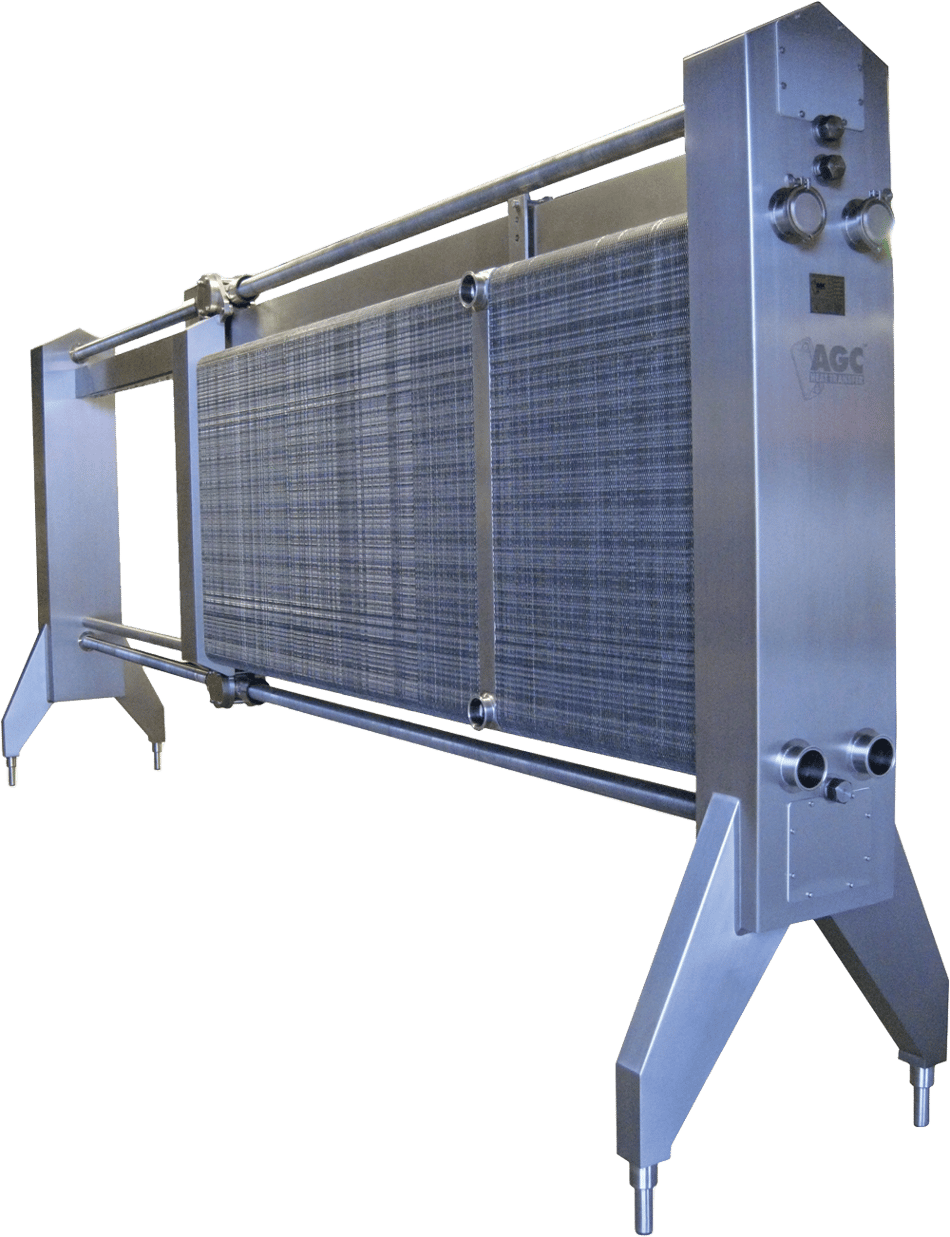

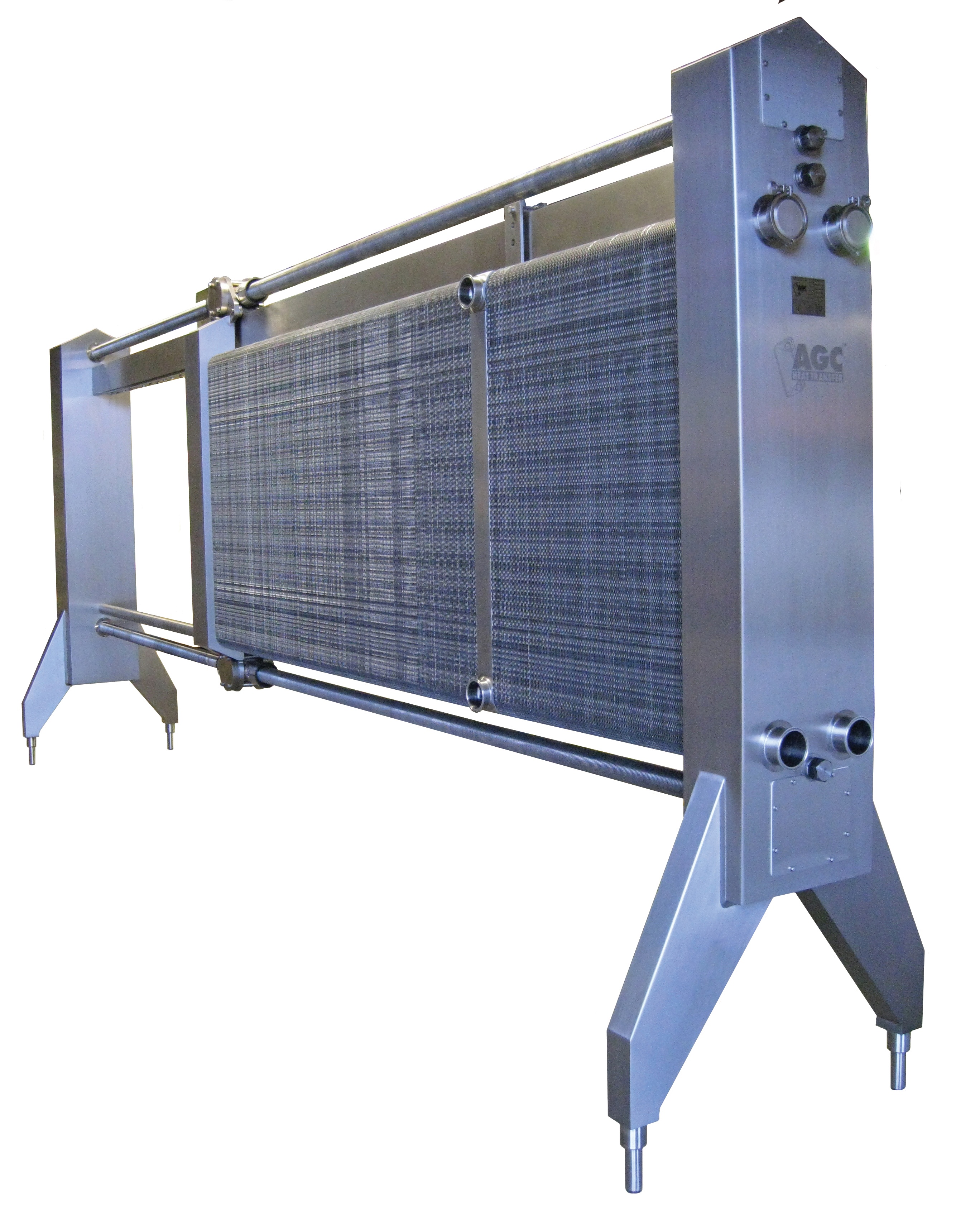

Model AR51-D Hydraulic Frame

QUALITY FEATURES INCLUDE:

  • Variable Plate Capacity - Fixed footprint
  • Simple self-contained hydraulic closure
  • High Pressure 200 PSIG design
  • Polished to #4 finish
  • 6 Leg Height Options to choose from
  • 2-1/2″ and 4″ Terminal dividers available
  • Hydraulic End support clad in heavy gauge stainless steel over powder coated base structure to resist corrosion
  • Heavy Wall Ports to resist cracks
  • Built to current 3-A specifications
  • Two plate styles to choose from
AR51-H

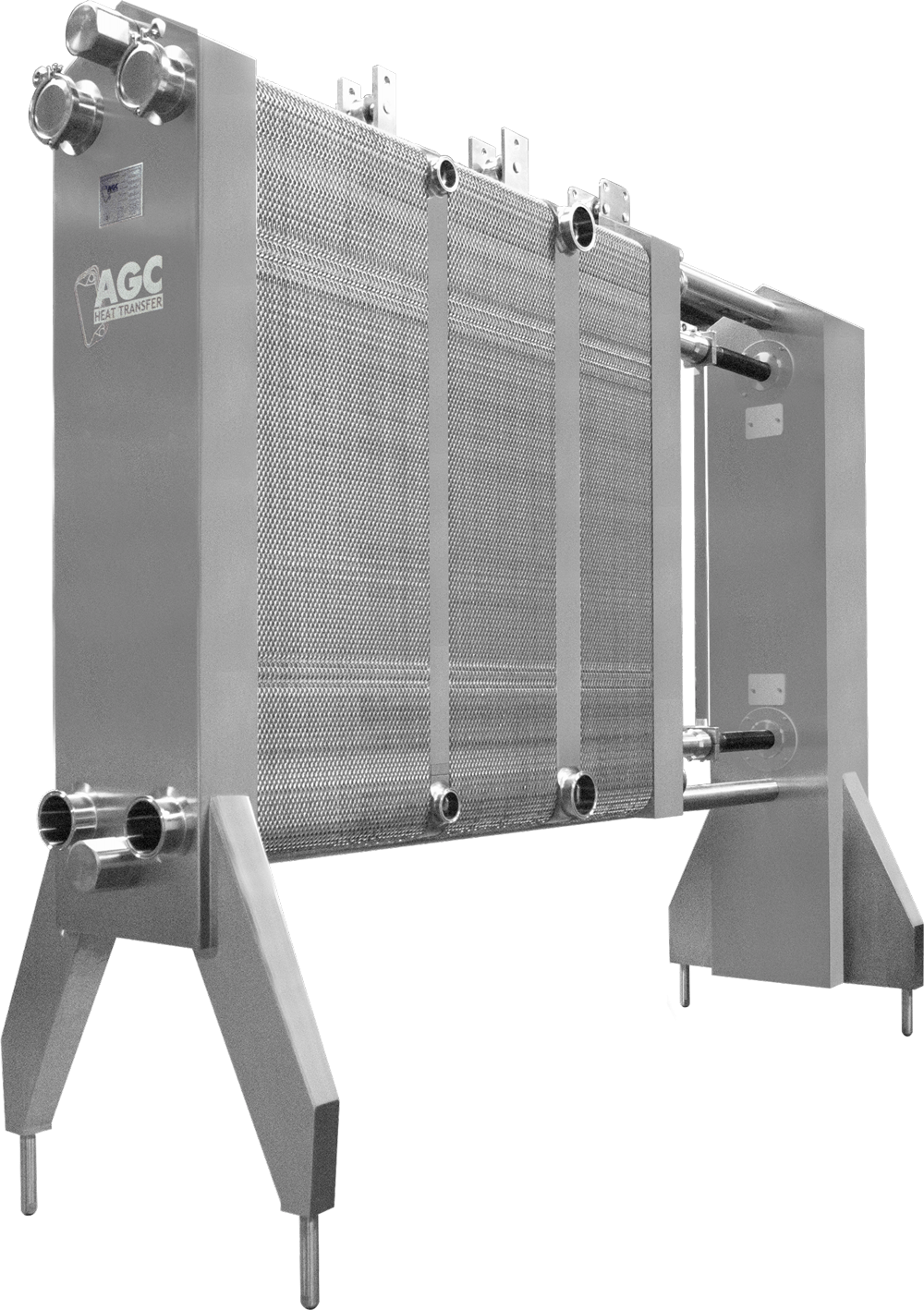

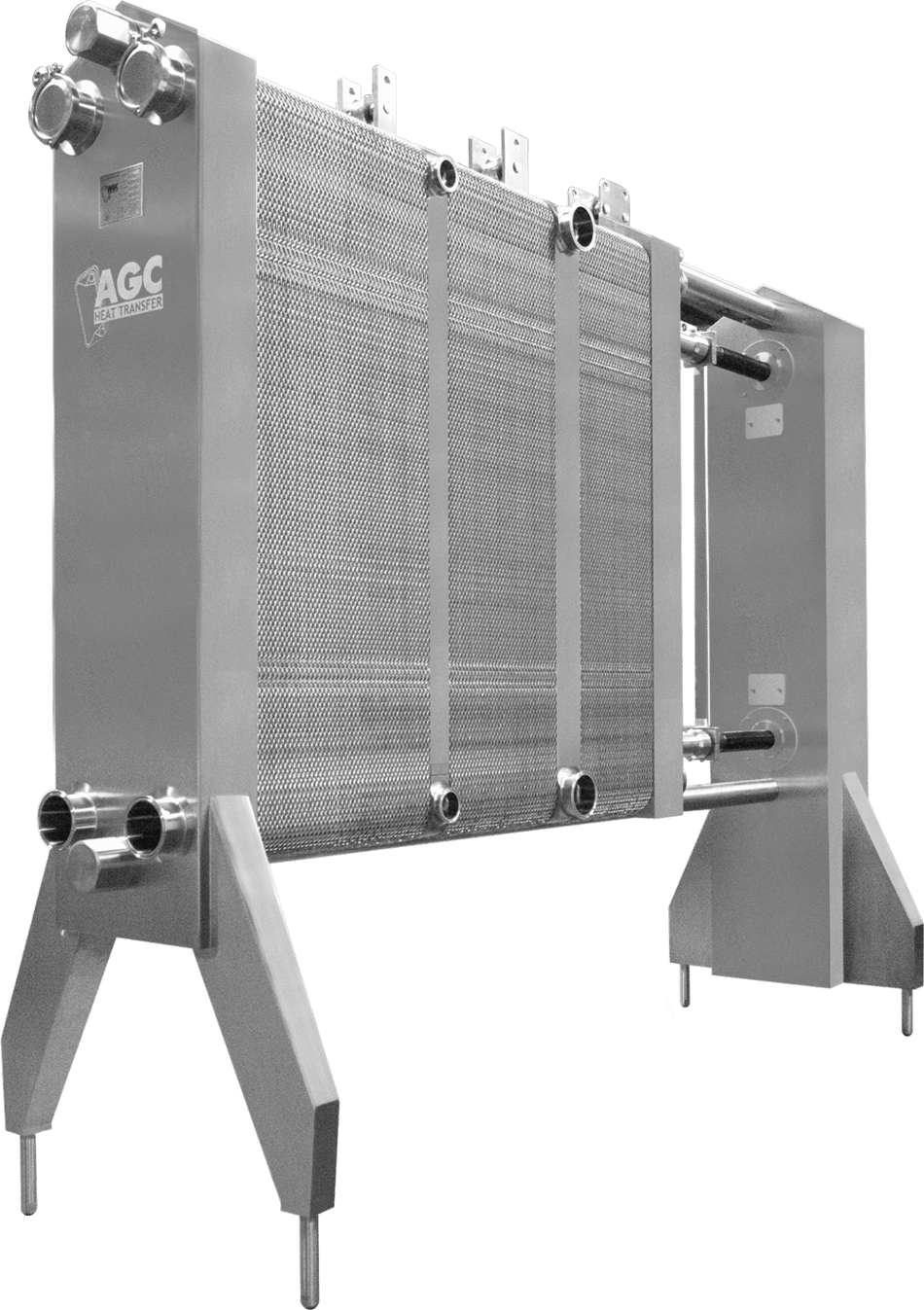

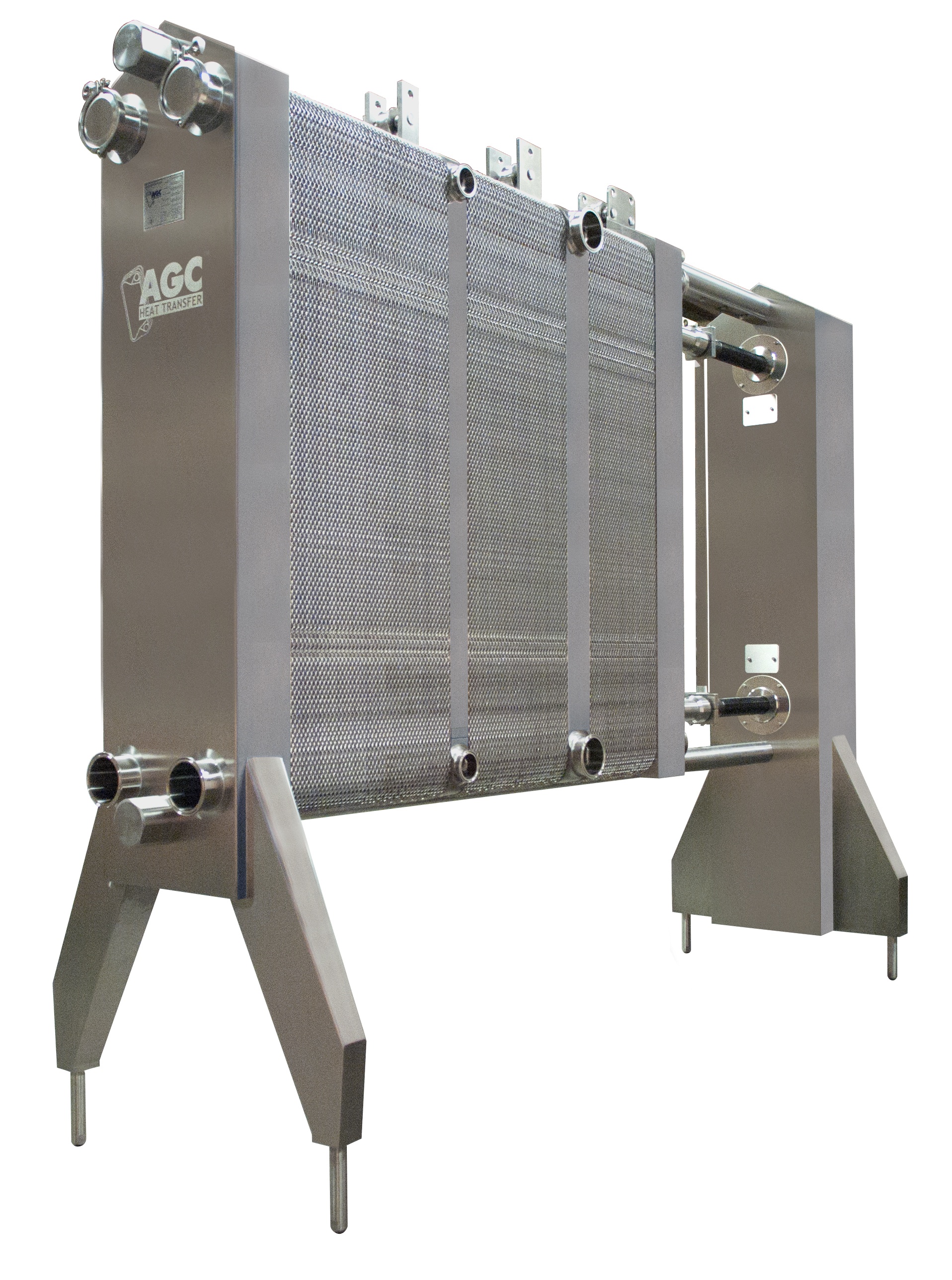

Model AR51-H Hydraulic Frame

QUALITY FEATURES INCLUDE:

  • High Pressure 200 PSIG design
  • Polished to #4 finish
  • High Capacity Frame Option
  • 6 Leg Height Options to choose from
  • 2-1/2″ and 4″ Terminal dividers available
  • Hydraulic End support clad in heavy gauge stainless steel over powder coated base structure to resist corrosion
  • Heavy Wall Ports to resist cracks
  • Parts interchangeable with your existing R51 frames
  • Built to current 3-A specifications
  • Two Plate Styles to choose from
Model Pro31-H Hydraulic Frame

Model Pro31-H Hydraulic Frame

QUALITY FEATURES INCLUDE:

  • High Pressure 200 PSIG (14 bar) design
  • Polished to #4 finish
  • 2-1/2″ Terminal dividers available
  • Hydraulic End support clad in heavy gauge stainless steel over powder coated base structure to resist corrosion
  • Heavy Wall Ports to resist cracks
  • Parts interchangeable with your existing CR3 or SR31 frames

Save time and money: Easy Open-Close Hydraulic Frame with internal motor, pump, and Reservoir. A compact, floor saving design with common parts that’s easy to maintain.

Model Pro21-H Hydraulic Frame

Model Pro21-H Hydraulic Frame

QUALITY FEATURES INCLUDE:

  • Skillfully crafted to 3-A sanitary standards
  • Operating pressures up to 200 psig [14 bar]
  • Hydraulic End support clad in heavy gauge stainless steel over powder coated base structure to resist corrosion
  • Made in the USA
